MacDon PW8 - Auger Float

215575 81 Revision B
auger prior to operating the pick-up header to ensure that the auger rotates freely without touching the auger pan or
stripper bars.

$
%
&

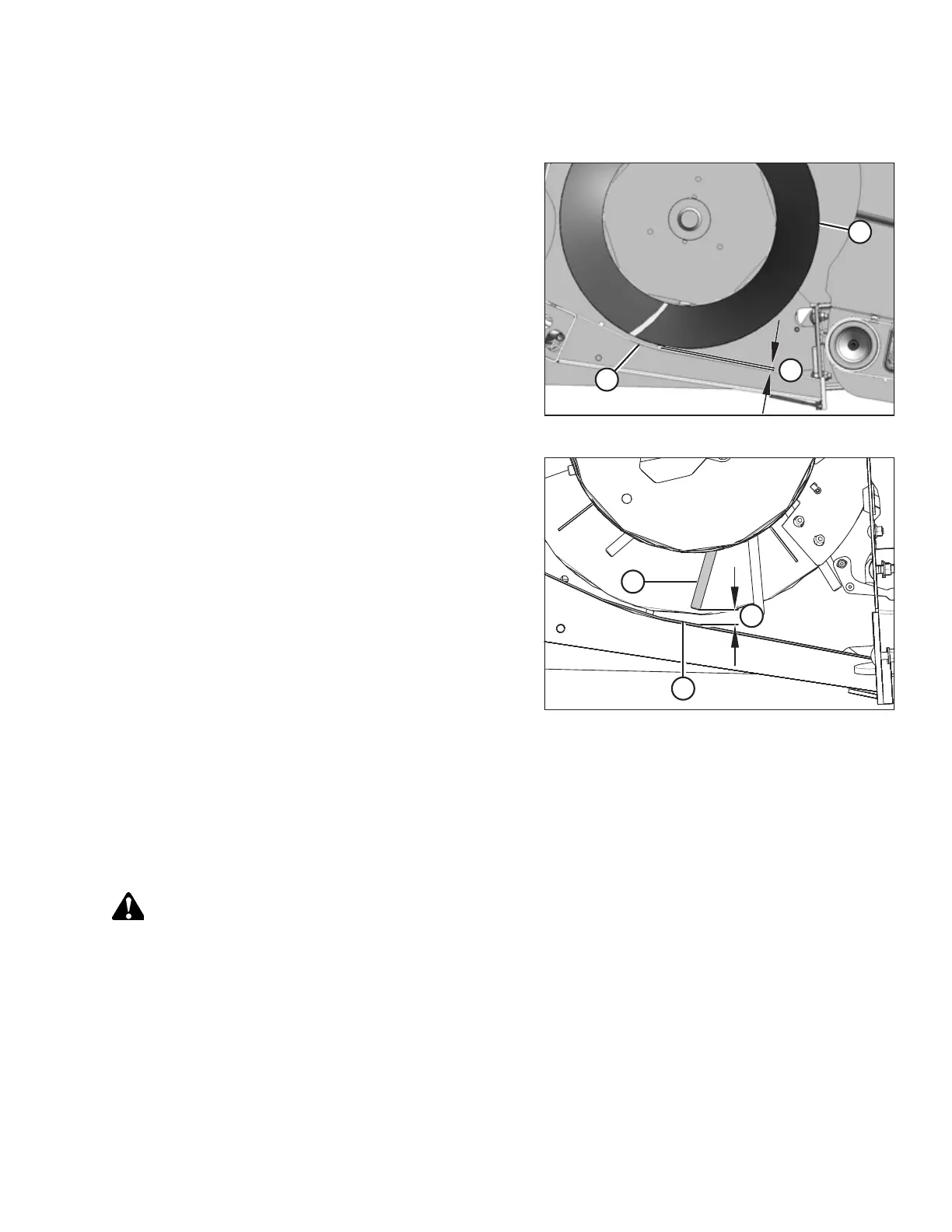

Figure 3.123: Clearance between Auger and Pan
1. Ensure that clearance (A) between auger flighting (B) and
pan (C) is 5–14 mm (3/16–9/16 in.).

%
&
$
Figure 3.124: Clearance between Finger and Pan
2. Ensure that clearance (A) between auger fingers (B) and
pan (C) is 20–25 mm (13/16–1 in.).
3. If clearance (A) does not match the specifications, refer to
Adjusting Auger Position, page 85 for adjustment
instructions.
Auger Float
The auger has an upward float range of 74 mm (3 in.), but it can be locked to operate in rigid-header mode.
Locking Auger Float
Locking the auger float prevents any vertical movement of the auger drum.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Shut down the combine and remove the key from the ignition.
OPERATION
