MacDon PW8 - Calibrating Header - Gleaner S9 Series

215575 167 Revision B

$

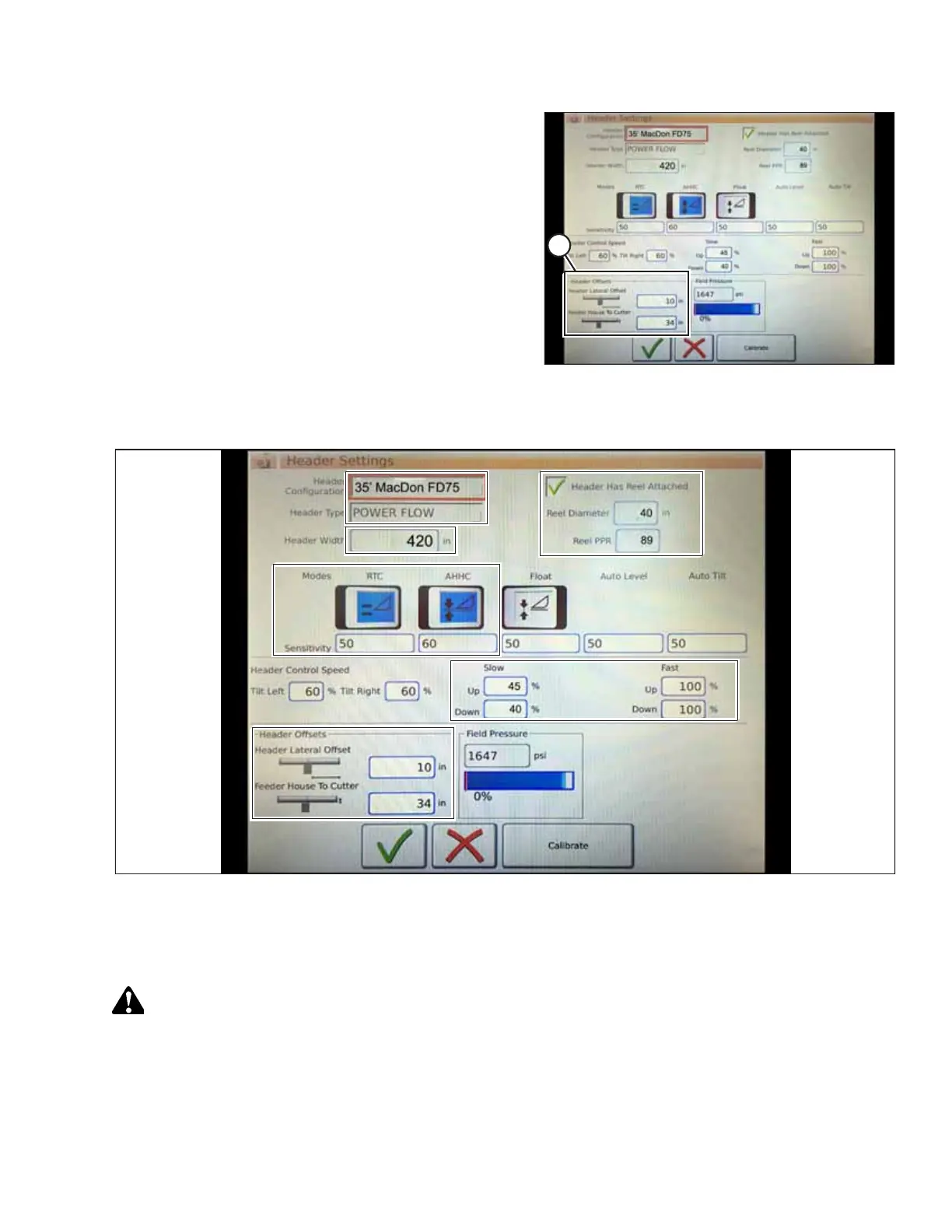

Figure 4.126: Header Offset Settings
4. Header Offsets (A): Offset distances are important for yield
mapping. There are two dimensions that can be adjusted
on the HEADER SETTINGS page:
• Header Lateral Offset: this is the distance between the
centerline of the header and the centerline of the
machine. This should be set at 0 for a MacDon header.
• Feeder House to Cutter: this is the distance from the
machine interface to the cutterbar. This should be set at
68 for a MacDon header.
Figure 4.127: Header Settings Inputs for MacDon Headers

4.10.3 Calibrating Header – Gleaner
®®
S9 Series
The auto header height control (AHHC) sensor output must be calibrated for Gleaner
®
S9 series combines, or the AHHC
feature will not work properly.
CAUTION
Clear the area of other persons, pets, etc. Keep children away from machinery. Walk around the machine to be sure no
one is under, on, or close to it.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for updated information.
AUTO HEADER HEIGHT CONTROL
