MacDon PW8 - New Holland CR;CX Series Combine; Attaching Header to New Holland CR;CX Series Combine

215575 64 Revision B

$
%

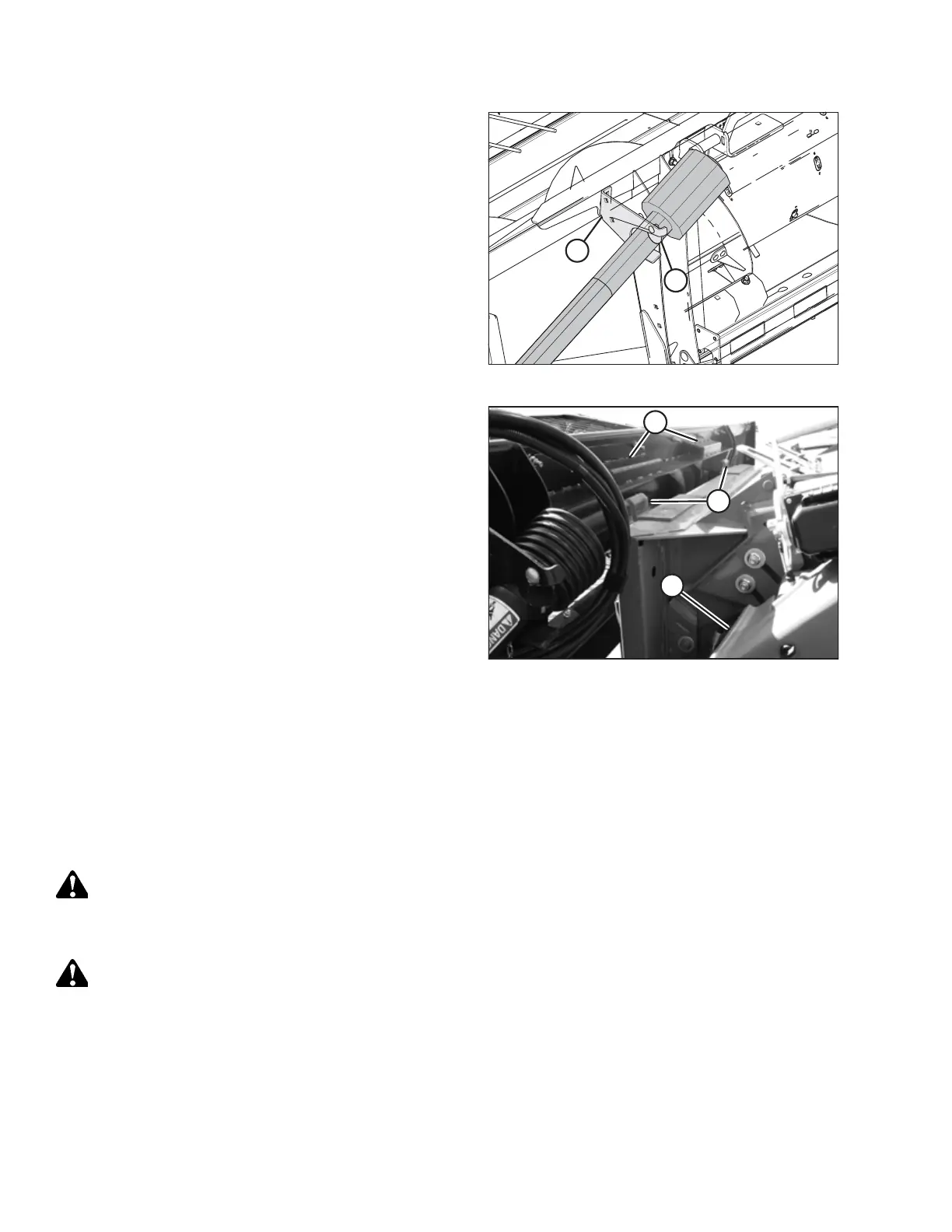

Figure 3.85: Driveline
8. Slide the driveline into storage hook (A) on the header and
rotate disc (B) to secure the driveline.

$
%
&
Figure 3.86: Disengaging Header
9. Close combine driveshield (A).
10. Lower the feeder house until saddle (B) disengages and
clears the header top beam (C).
11. Slowly back the combine away from the header.
3.10.5 New Holland CR/CX Series Combine
This section provides instructions for attaching/detaching the PW8 Pick-Up Header to/from all New Holland CR/CX Series
combines.
Attaching Header to New Holland CR/CX Series Combine
Attach the header to the combine to be able to operate the header using the combine operator’s console.
DANGER
To avoid injury or death from unexpected start-up of the machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
DANGER
Check to be sure all bystanders have cleared the area.
OPERATION
