215575 122 Revision B
4.5.2 Setting up Automatic Header Controls – IDEAL
™™
Series
To configure the automatic header height control (AHHC) functions on an IDEAL
™
combine to work with your header,
navigate to the HEADER SETTINGS page on the combine’s computer.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. For instructions,
refer to the combine operator’s manual for updated information.
$
&
&
%

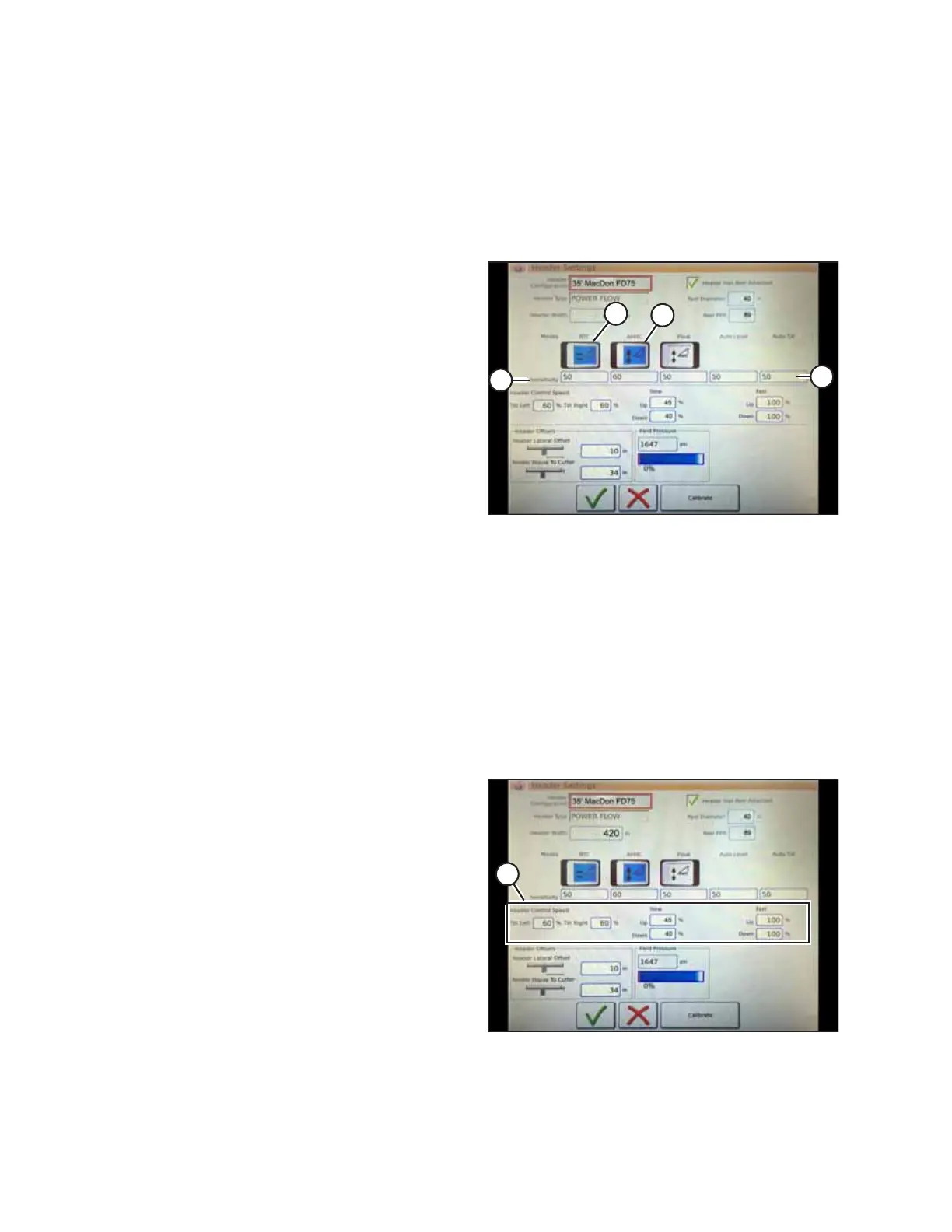

Figure 4.36: Automatic Controls and Sensitivity
Settings
1. Automatic Control Functions: There are toggle (OFF/ON)
switches on the HEADER SETTINGS page for the automatic
control functions. For MacDon headers, ensure that the
following two functions are enabled as shown:
• RTC (return to cut) (A)
• AHHC (automatic header height control) (B)
All other switches should be disabled (not highlighted).
2. Sensitivity setting (C) controls how responsive a control
(RTC or AHHC) is to a given change in sensor feedback. The
setting fields are located directly below the toggle switches.
To enter a new sensitivity setting, touch the setting field
below the specific toggle switch, and enter the new value in
the on-screen keyboard.
• Increase the sensitivity if the combine does not change
the feeder position quickly enough when in Auto Mode.
• Decrease the sensitivity if the combine continually
hunts for a position in Auto Mode.
NOTE:
The recommended sensitivity settings for MacDon headers
are:
• 50 for RTC (A)
• 60 for AHHC (B)
$
Figure 4.37: Header Speed Control Settings
3. Header Speed: HEADER CONTROL SPEED area (A) on the
HEADER SETTINGS page is used to adjust the following
speeds:
• Tilt left and right is the lateral tilt of the combine
faceplate
• Header up and down (slow and fast speeds) is a two-
stage button with slow speed on the first detent and
fast on the second
NOTE:
The recommended header control speed settings are:
• Slow: Up 45/Down 40
• Fast: Up 100/Down 100
AUTO HEADER HEIGHT CONTROL
