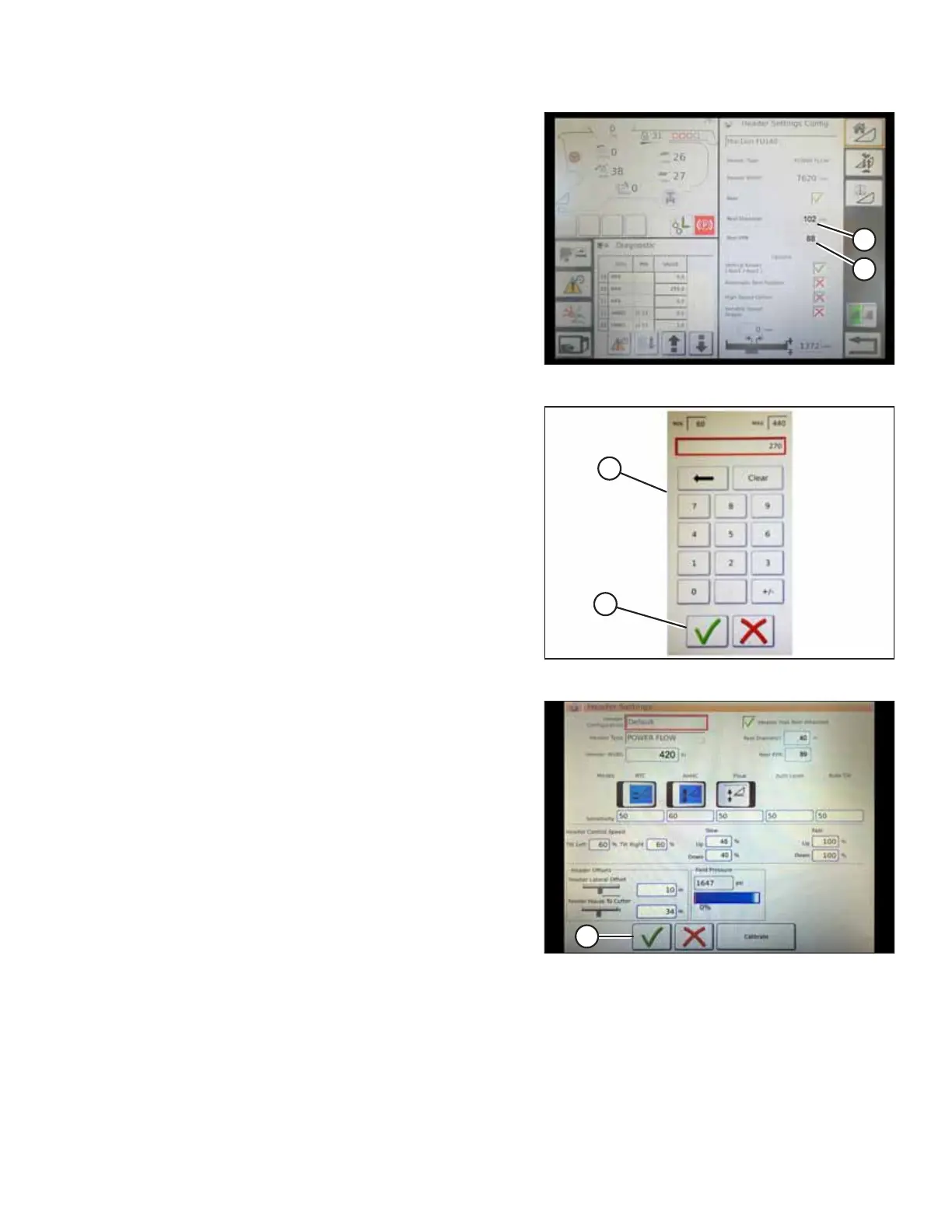

Figure 4.33: Header Settings
8. Touch REEL DIAMETER field (A) and a numeric keypad
appears. Enter the following value for a MacDon reel:
• 11 cm (4.3 in.)
9. Touch REEL PPR (Pulses Per Revolution) field (B) and enter
the following as the value for your MacDon header:
• 18

$
%
Figure 4.34: Numeric Keypad
10. Touch green check mark (B) at the bottom of numeric
keypad (A) when complete, or the red X to cancel.

$
Figure 4.35: Header Settings Page
11. When complete, touch green check mark (A) at the bottom
of the HEADER SETTINGS page.
AUTO HEADER HEIGHT CONTROL
