215575 120 Revision B
$

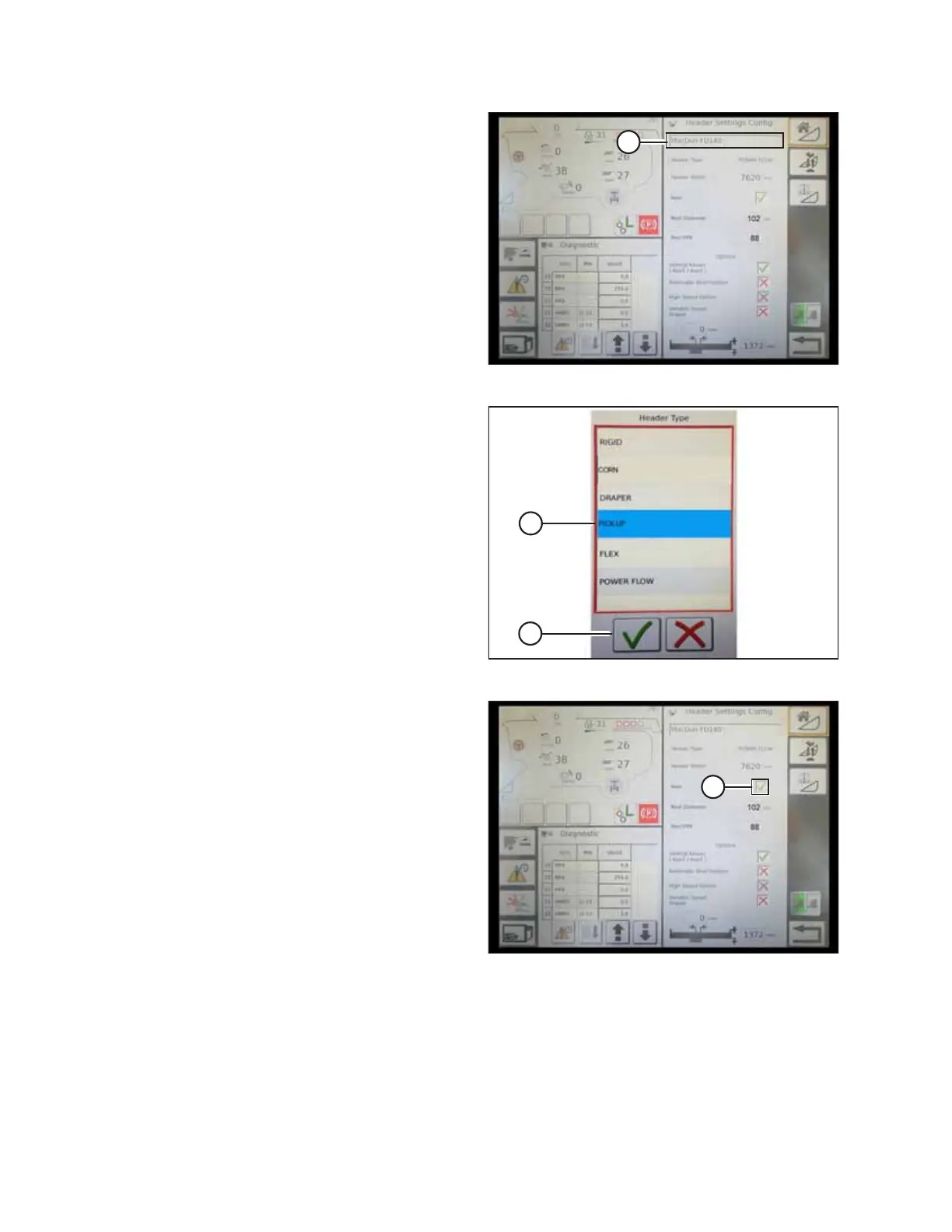

Figure 4.30: Header Settings
4. To specify the type of header installed on the machine,
touch HEADER TYPE field (A).
$
%
Figure 4.31: Header Type
5. From the list of predefined header types, touch PICK UP (A).
6. Touch green check mark (B) to save the selection and
continue.
$
Figure 4.32: Header Settings
7. Make sure that REEL check box (A) is checked.
AUTO HEADER HEIGHT CONTROL
