MacDon PW8 - Removing Driveline Guard

215575 229 Revision B
Removing Driveline Guard
The driveline guard must remain attached to the driveline during pick-up header operation, but can be removed for
maintenance purposes.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
NOTE:
The driveline does NOT need to be removed from the header in order to remove the driveline guard.
1. Shut down the engine, and remove the key from the ignition.

$
%

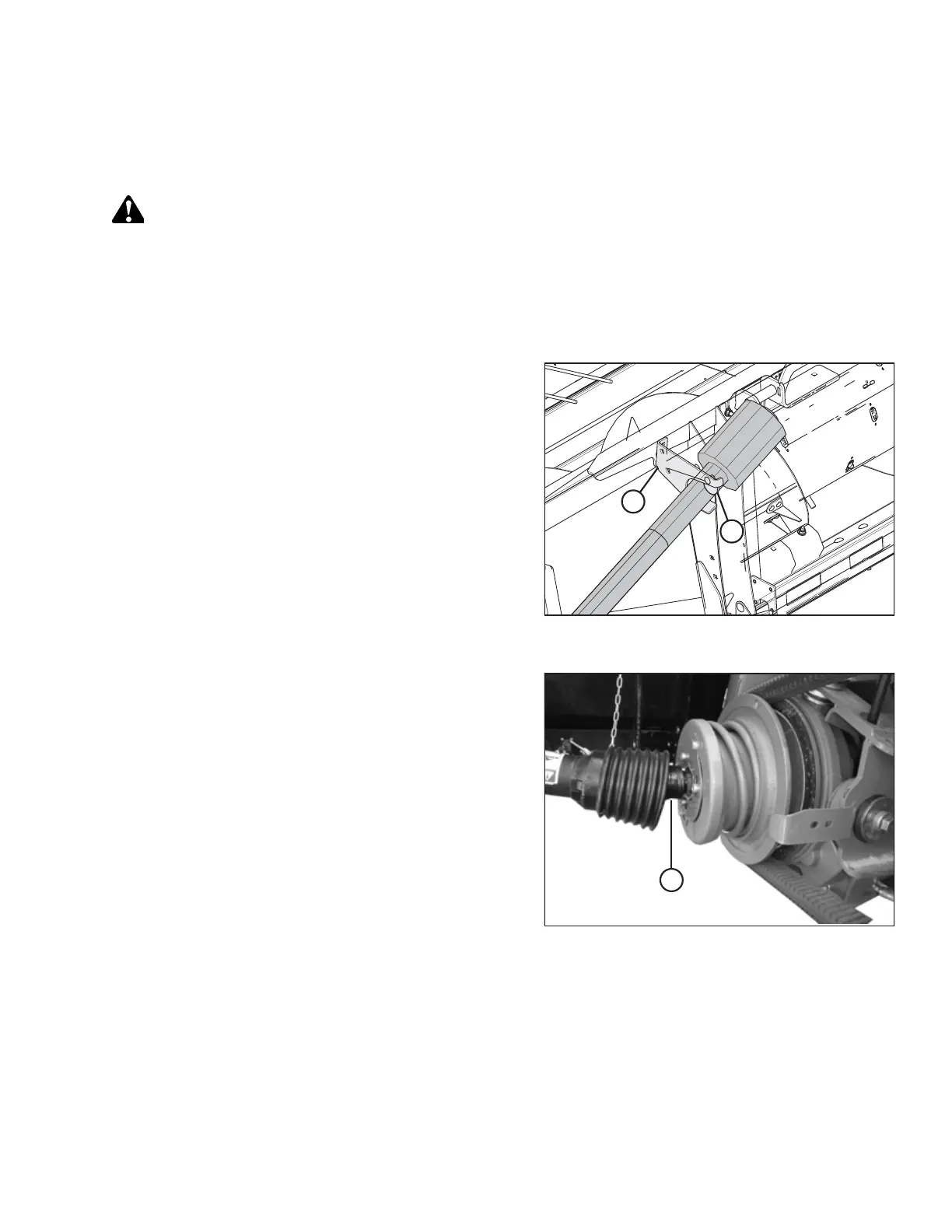

Figure 5.16: Combine End of Driveline in Storage
Position
2. Disconnect the tethers (not shown) at each end of the
driveline.
3. If the driveline is in the storage position, rotate disc (B) on
driveline storage hook (A), and remove the driveline from
the hook.

$
Figure 5.17: Combine End of Driveline Attached to
Combine
4. If the driveline is attached to the combine, remove the
driveline from the combine by pulling quick disconnect
collar (A) to release the driveline yoke from the combine
shaft. For detailed instructions, refer to Removing Header
Driveline, page 225 .
