215575 230 Revision B
$
%

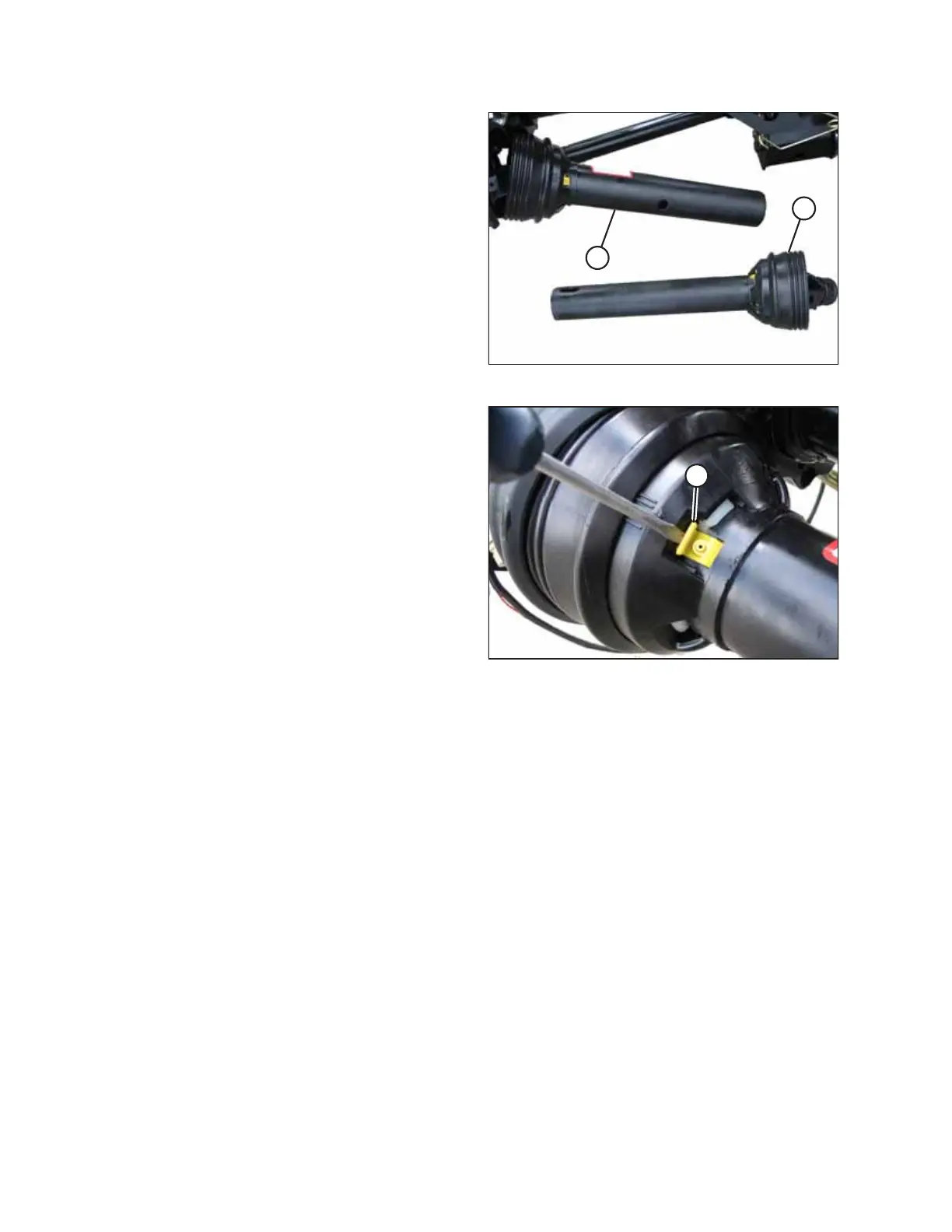

Figure 5.18: Separated Driveline
5. Lift the combine end of driveline (A) from the hook, and
extend the driveline until it separates. Hold the header end
of driveline (B) to prevent it from striking the ground.
$
Figure 5.19: Driveline Guard
6. Use a slotted screwdriver to release grease fitting/lock (A).
MAINTENANCE AND SERVICING
