215575 308 Revision B
Installing Master Cylinder Hose
Ensure that the hydraulic hose ends are kept free of contamination while the hose is being installed.
$
%
&
'

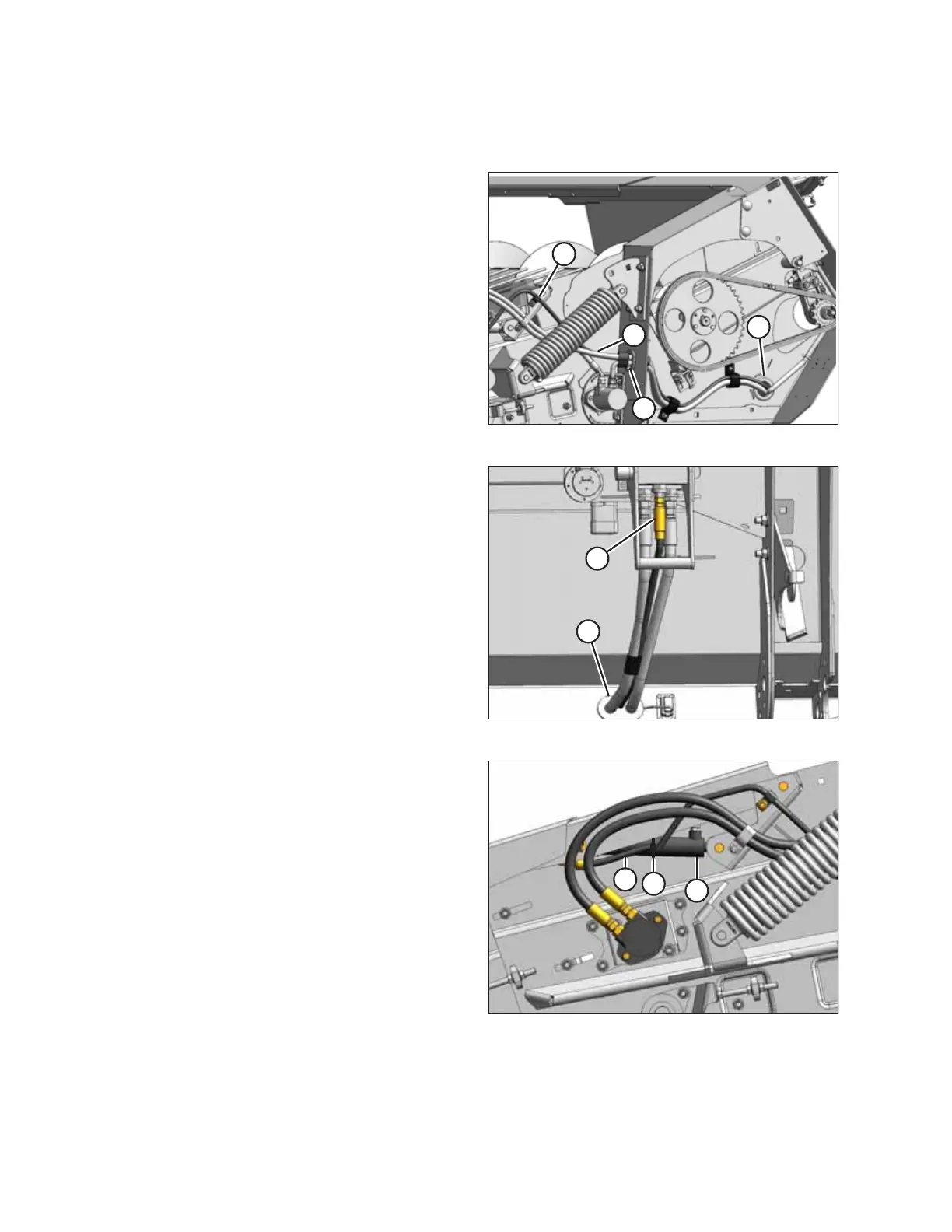

Figure 5.204: Left Endsheet
1. Feed hose (A) through grommet (B) in the endsheet.
2. Feed hose through clips (C) and grommet (D) to the
master cylinder.
%
$
Figure 5.205: Left Backsheet
3. Feed hose (A) through grommet (B).
4. Connect hose (A) to multicoupler.
$
%
&
Figure 5.206: Left Side of Header
5. Connect hose (A) to master cylinder (B). Secure the hose to
the master cylinder with cable tie (C).
MAINTENANCE AND SERVICING
