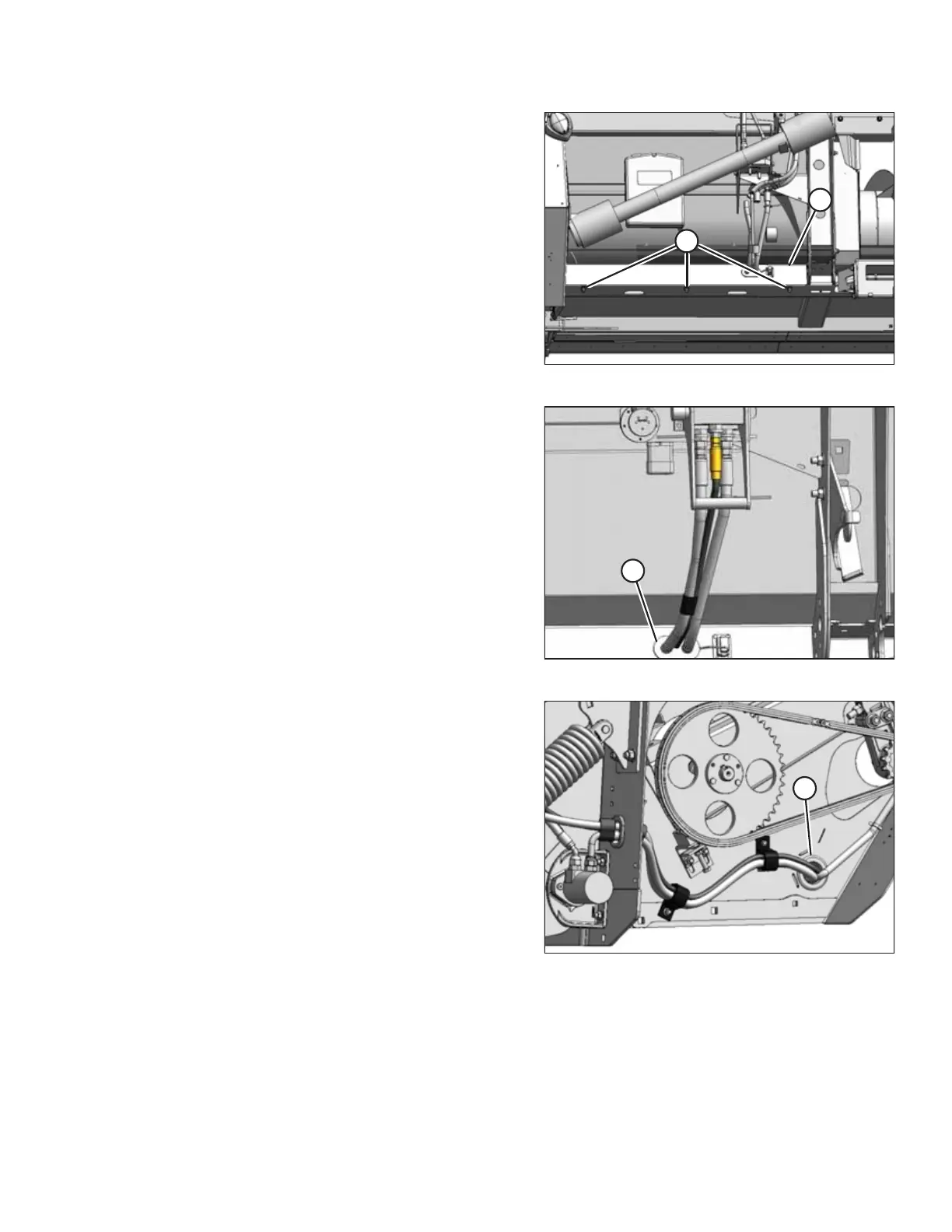

Figure 5.201: Bottom Beam Cover
9. Loosen three bolts (A) and remove cover (B).
10. Pull the hydraulic hose out of cover (B).

$
Figure 5.202: Left Backsheet
11. Remove grommet (A) to remove the hydraulic hose (if
necessary).

$
Figure 5.203: Left Endsheet
12. Pull the hydraulic hose through grommet (A) in the
endsheet.
