MacDon PW8 - John Deere 60, 70, S, and T Series; Attaching Header to John Deere 60, 70, S, or T Series Combine

215575 58 Revision B

$
%

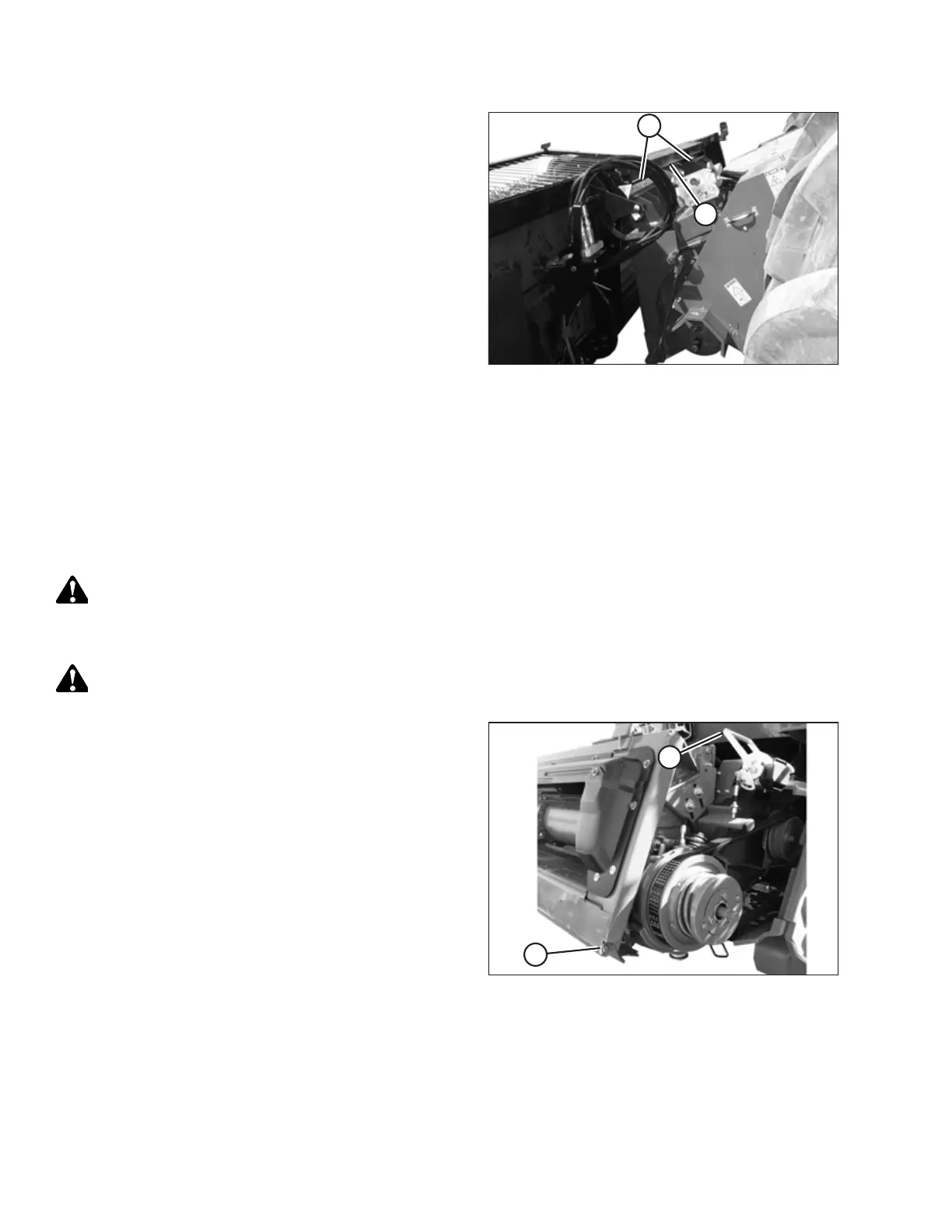

Figure 3.70: Disengaging Header
9. Lower the feeder house until posts (A) are fully disengaged
from header top beam (B).
10. Slowly back the combine away from the header.
3.10.4 John Deere 60, 70, S, and T Series
This section provides instructions for attaching/detaching the PW8 Pick-Up Header to/from John Deere 96/97/9860STS,
96/97/9870, S650/660/670/680/690, 9660WTS,and T670 combines.
Attaching Header to John Deere 60, 70, S, or T Series Combine
Attach the header to the combine to be able to operate the header using the combine operator’s console.
DANGER
To avoid injury or death from unexpected start-up of the machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
DANGER
Check to be sure all bystanders have cleared the area.

$
%
Figure 3.71: Feeder House Locks
1. Push handle (A) on the combine coupler toward the feeder
house to retract pins (B) at the bottom corners of the
feeder house.
OPERATION
