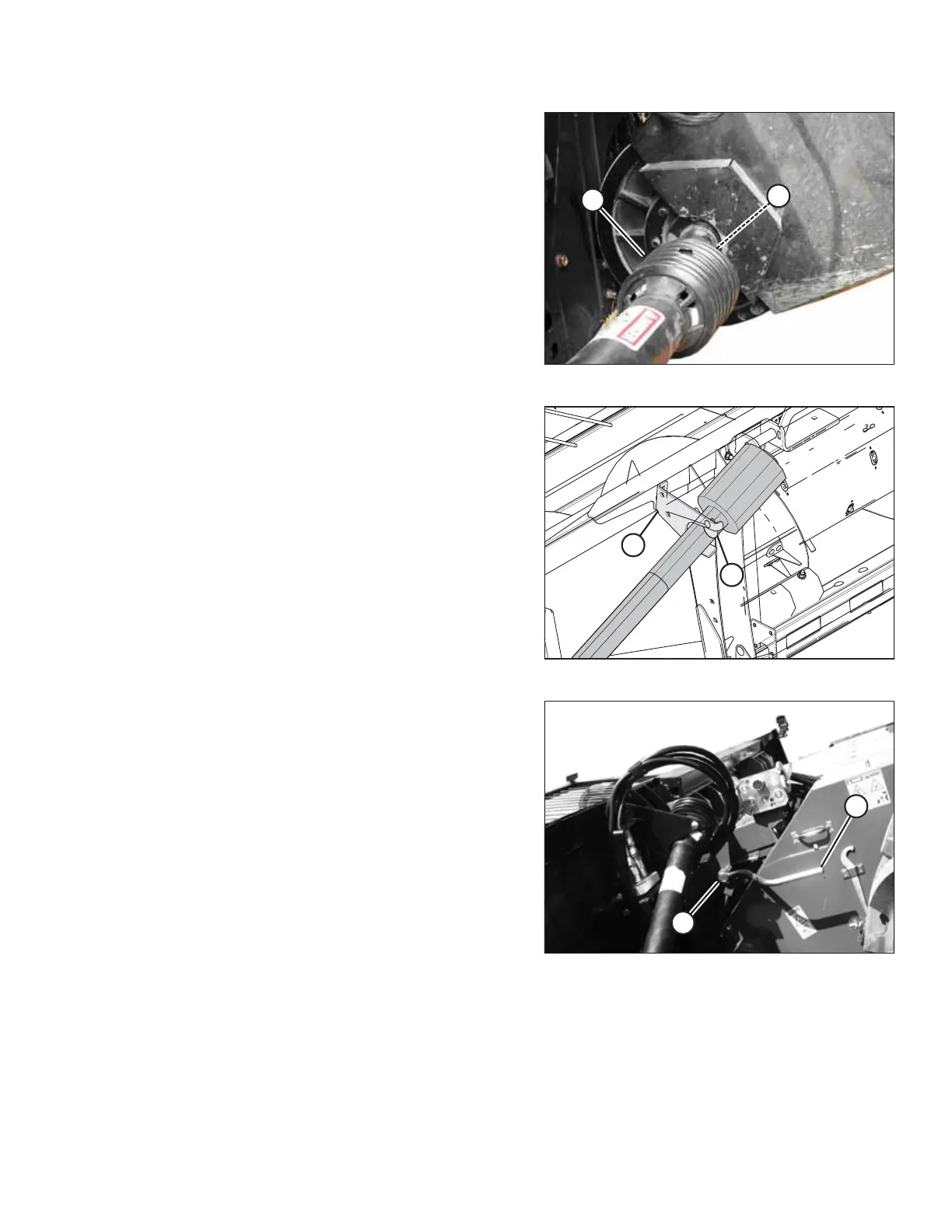

Figure 3.67: Detaching Driveline
6. Pull back collar (A) on driveline (B), and remove the
driveline from the combine.
Figure 3.68: Driveline in Storage Position
7. Slide driveline into storage hook (A) on the header and
rotate disc (B) to secure the driveline.
Figure 3.69: AGCO Except Gleaner R and S
8. Attach tool (A) to locking mechanism (B) on the feeder
house, and pull the tool back to the horizontal position to
unlock the header from the feeder house.
