215575 311 Revision B

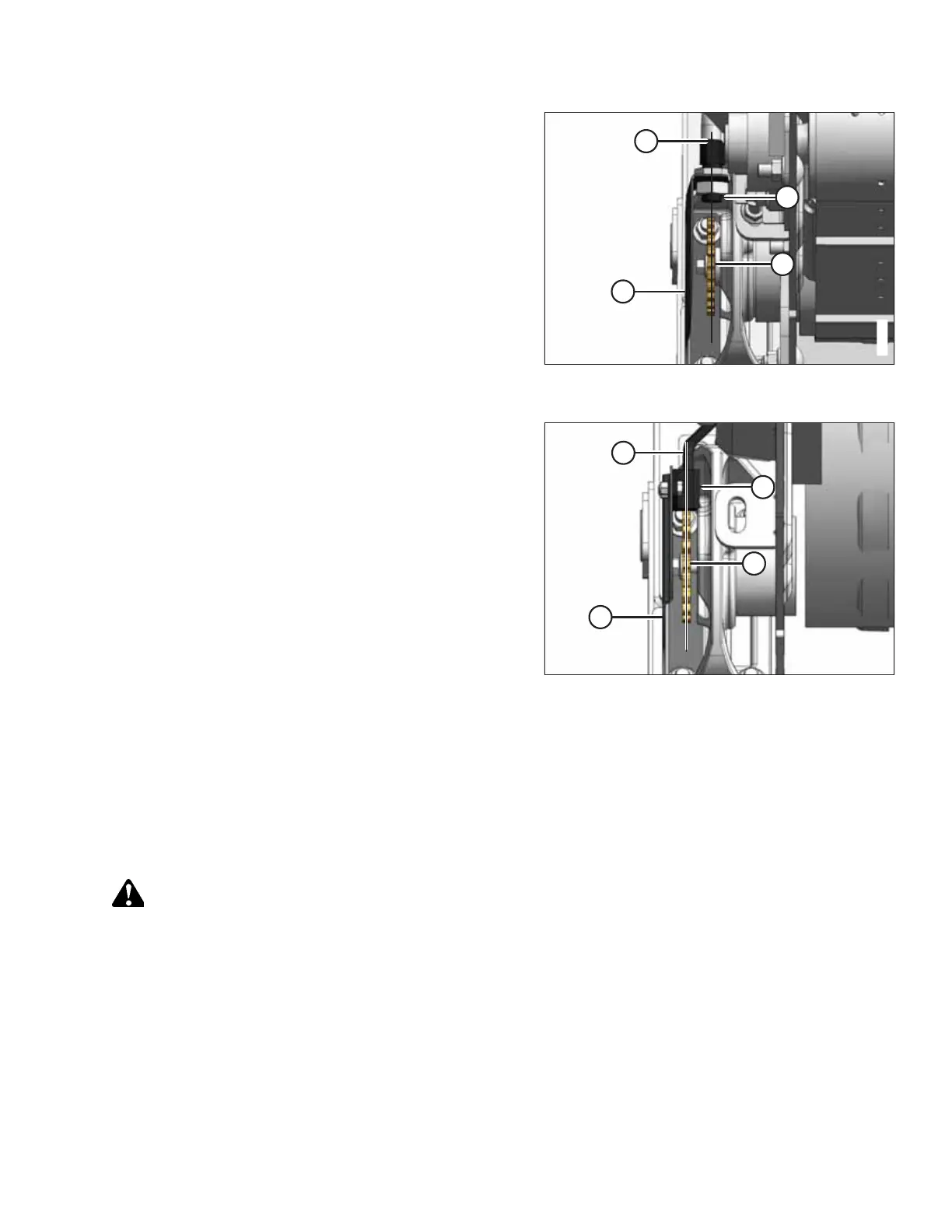

Figure 5.210: Sensor and Disc Alignment – Non-AGCO
Combines
Figure 5.211: Sensor and Disc Alignment – AGCO
Combines
4. Check vertical alignment (A) of sensor (B) and sensor
disc (C). If required, adjust support (D) inboard or outboard
to adjust vertical alignment.
5. Reinstall the right endshield. For instructions, refer to 3.3.6 Installing Right Endshield, page 30.
5.10.2 Adjusting Draper Speed Sensor
The draper speed sensor position is factory-set, but it may require adjustment if problems occur with the draper speed
system or when replacing sensor components. Check the draper speed sensor position prior to making any adjustments.
Refer to 5.10.1 Checking Draper Speed Sensor Position, page 310 for instructions.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground and lower the hold-down completely.
2. Shut down the engine, and remove the key from the ignition.
3. Remove the right endshield. For instructions, refer to 3.3.5 Removing Right Endshield, page 30.
MAINTENANCE AND SERVICING
