215575 62 Revision B
$
%
&

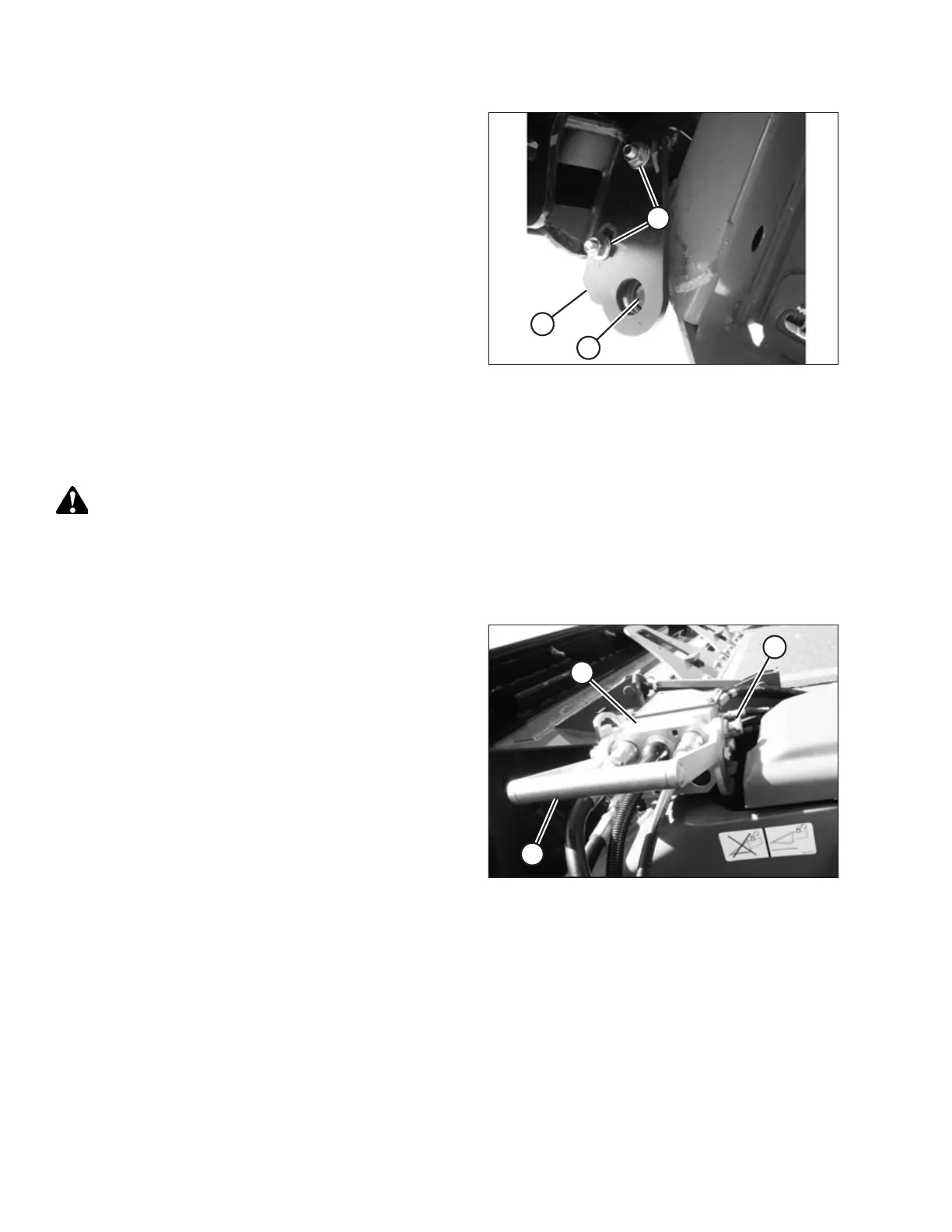

Figure 3.80: Aligning Locking Plates
NOTE:
If the handle does not move to the fully horizontal position,
verify that locking plates (A) on the header are aligned with
locking pins (B) on either side of the feeder house. If
necessary, loosen nuts (C) and adjust plates (A) to line up
with pins (B). Retighten the nuts.
Detaching Header from John Deere 60, 70, S, and T Series Combine
Be sure to place the header driveline on its storage hook when detaching it from a John Deere combine.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Drive the combine to a level area, if possible, and position the header slightly off the ground.
2. Shut down the engine, and remove the key from the ignition.
$
%
&
Figure 3.81: Releasing Multicoupler
3. Pull out knob (A) on the combine multicoupler, and move
handle (B) toward the feeder house to release coupler (C)
from the combine and to retract the locking pins at the
base of the feeder house.
OPERATION
