215575 61 Revision B

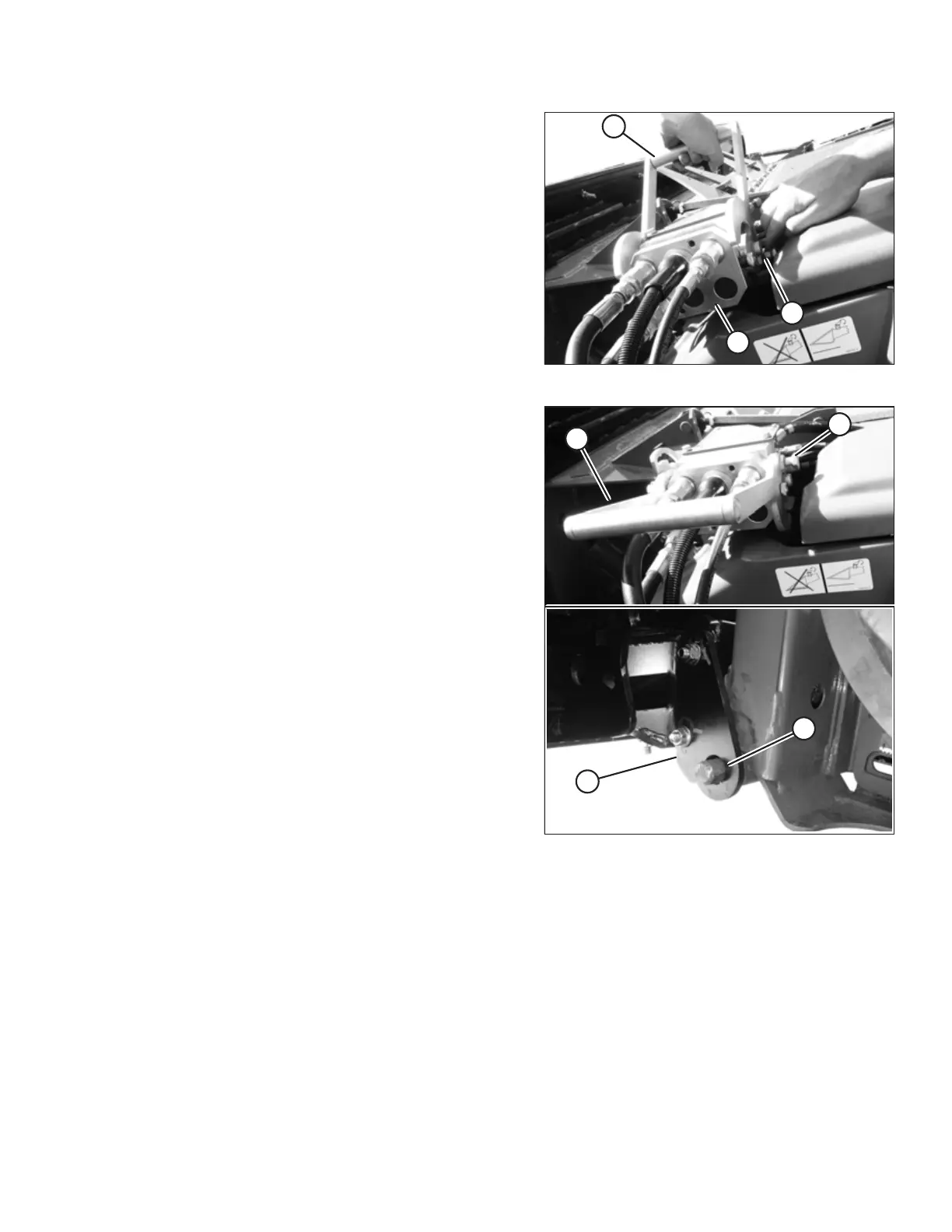

Figure 3.78: Engaging Coupler
12. Place coupler (A) onto the combine receptacle.
13. Pull out knob (B) to release the handle, and pull handle (C)
to engage the pins in coupler.
Figure 3.79: Locking Feeder House
14. Pull handle (A) from the vertical to the fully horizontal
position to fully engage the multicoupler and to extend
pins (B) at the base of the feeder house into locking
plates (C). Knob (D) will engage with the lock handle.
OPERATION
