215575 60 Revision B
$

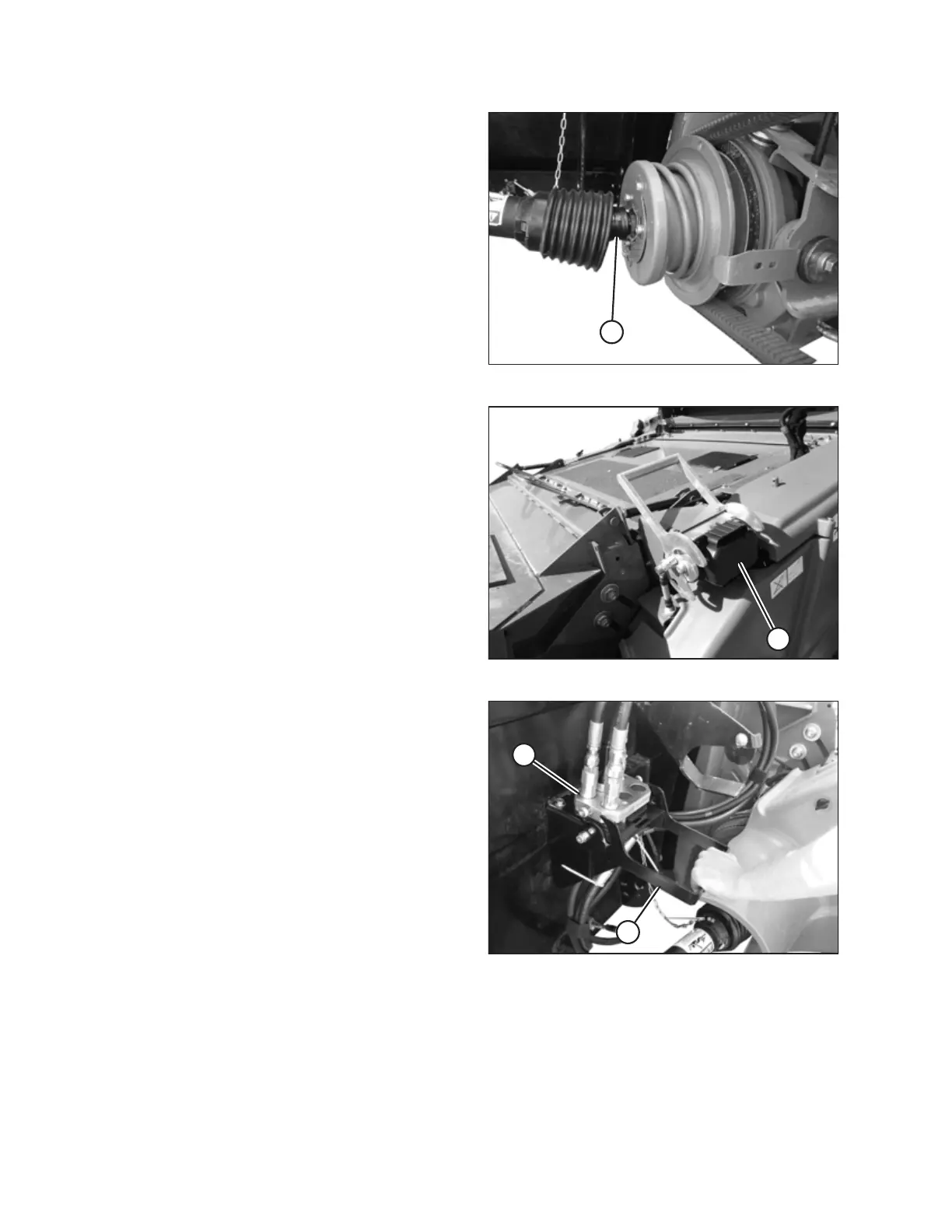

Figure 3.75: Attaching Driveline to Combine
8. Pull back collar (A) on the end of the driveline and slide the
driveline onto the feeder house driveshaft until the
collar locks.
9. Close the feeder house driveshield.
$
Figure 3.76: Combine Receptacle
10. Remove cover (A) from the combine multicoupler
receptacle.
$
%
Figure 3.77: Releasing Coupler
11. Pull handle (A) on the header to release multicoupler (B)
from the storage position, remove the coupler, and push
the handle back into the header.
