2. Start the engine.

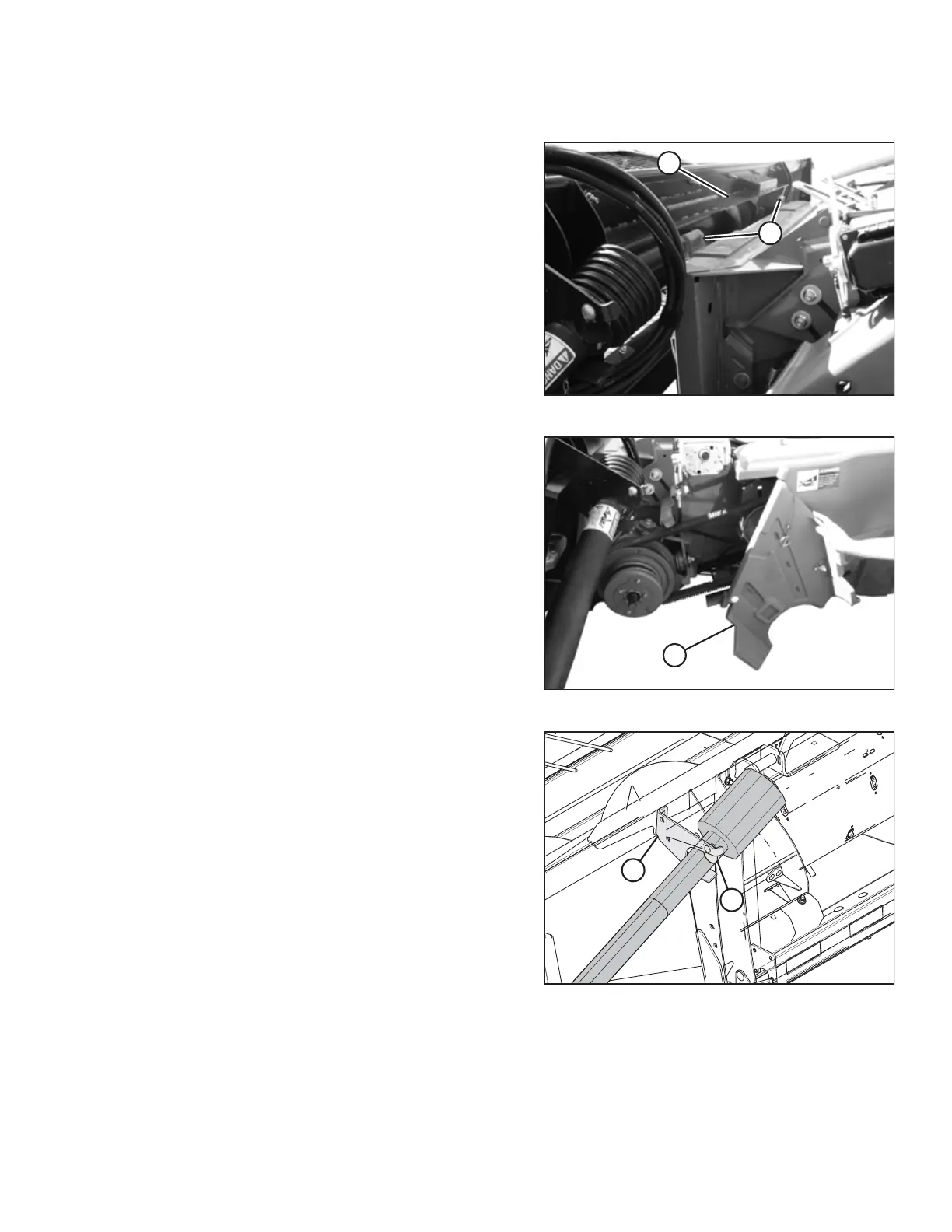

Figure 3.72: Header on Combine
3. Drive the combine slowly up to the header until feeder
house saddles (A) are directly under header top beam (B).
4. Raise the feeder house to lift the header, ensuring that
feeder house saddles (A) are properly engaged in the
header frame.
5. Position the header slightly off the ground, stop the engine,
and remove the key from the ignition.
Figure 3.73: Combine Driveshield
6. Open driveshield (A) on the combine feeder house.
Figure 3.74: Driveline in Storage Position
7. Rotate disc (B) on header driveline storage hook (A) and
remove the driveline from the hook.
