MacDon PW8 - Installing Master Cylinder

215575 299 Revision B

$
%

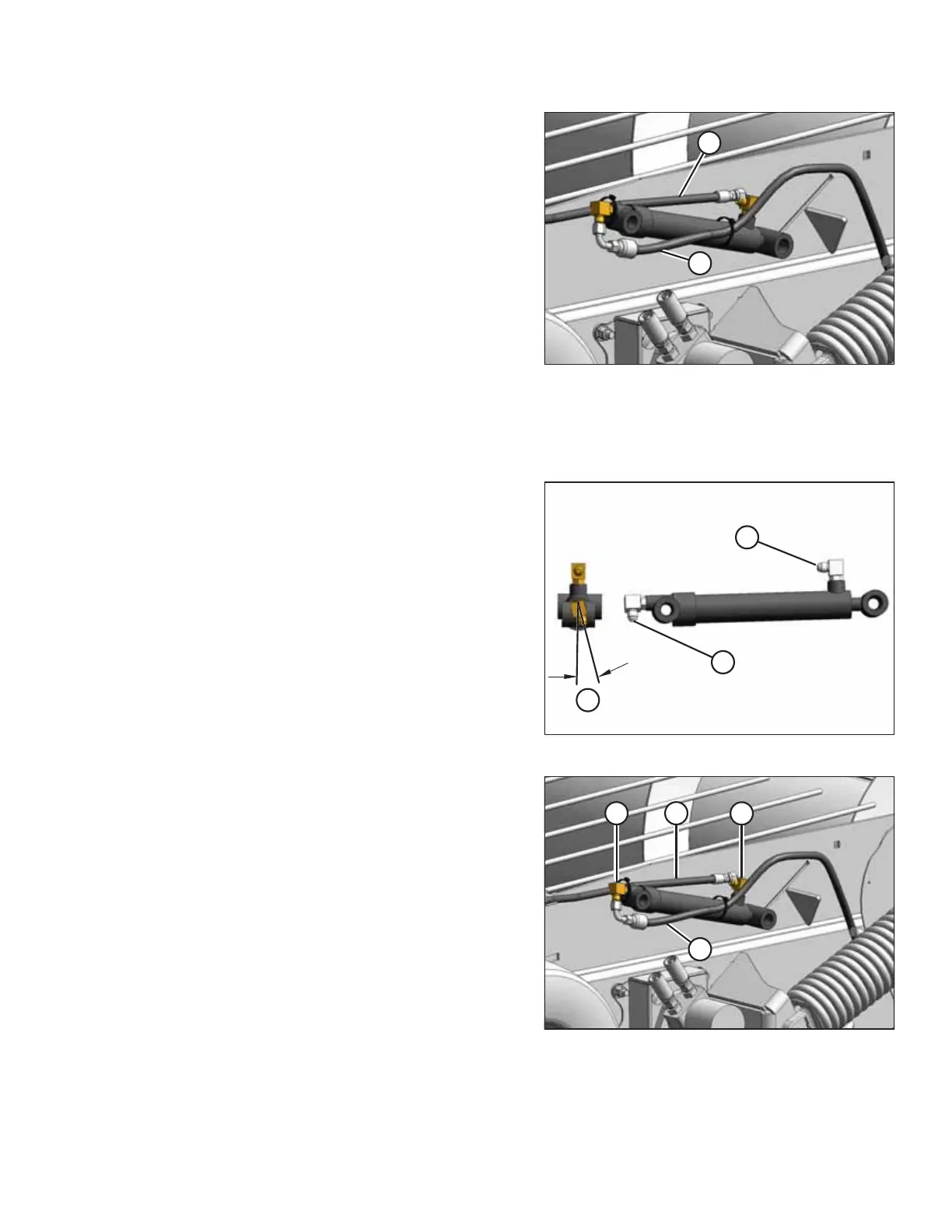

Figure 5.182: Master Cylinder — Left Side of Header
9. Cut the cable ties on hoses (A) and (B) and disconnect the
hoses from the master cylinder. Install caps onto the hose
ends or wrap ends with plastic to prevent contamination.
Installing Master Cylinder
You will need the 90° elbow fittings from the previously removed hold-down master cylinder to complete this procedure.

$
%
&
Figure 5.183: Master Cylinder
1. Remove two 90° elbow fittings (A) and (B) from the
previously removed master cylinder.
NOTE:
If the master cylinder was not removed, refer to Removing
Master Cylinder, page 297 for removal instructions.
2. Remove the plugs from the new master cylinder ports.
3. Install elbows (A) and (B) onto the new master cylinder as
shown. Align elbow (B) at angle (C) as shown. Tighten the
jam nuts on the elbows.

$
%
&
'
Figure 5.184: Master Cylinder — Left Side of Header
4. Connect hose (A) from the slave cylinder to elbow (C) at the
rod (aft) end of the master cylinder.
5. Connect hose (B) from header to elbow (D) at the barrel
(forward) end of the master cylinder.
6. Tighten the fittings, ensuring that hose (B) is routed so that
it remains parallel to the master cylinder.
