215575 231 Revision B

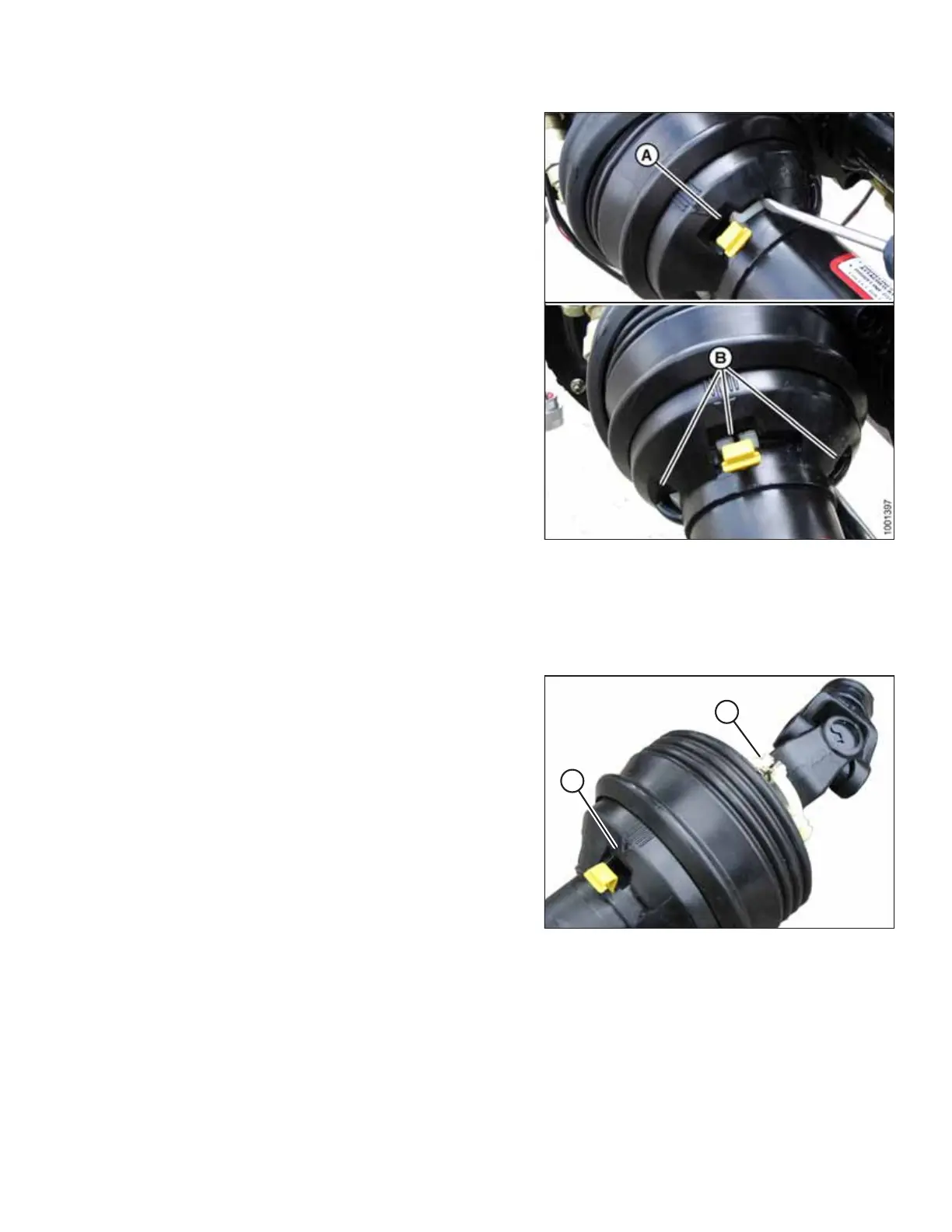

Figure 5.20: Driveline Guard
7. Rotate driveline guard locking ring (A) counterclockwise
using a slotted screwdriver until lugs (B) line up with the
slots in the guard.
8. Pull the driveline guard off the driveline.
Installing Driveline Guard
The driveline guard protects the pick-up header’s driveline ends from dust and dirt. It is also a safety feature which should
not be removed except for maintenance purposes.
Figure 5.21: Driveline Guard
1. Slide the driveline guard onto the driveline, and line up the
slotted lug on locking ring (A) with arrow (B) on the guard.
MAINTENANCE AND SERVICING
