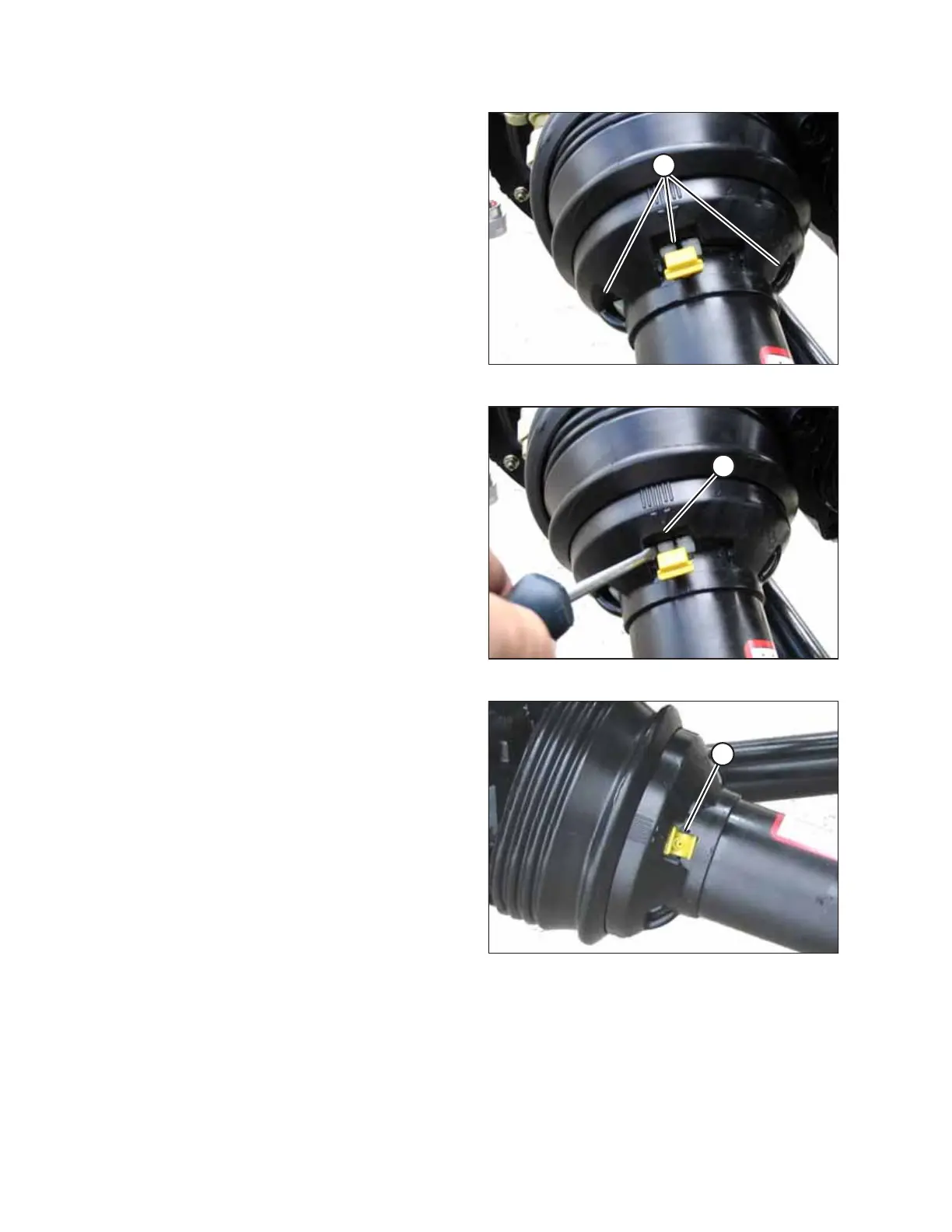

Figure 5.22: Driveline Guard
2. Push the driveline guard onto the ring until the locking ring
is visible in slots (A).
$
Figure 5.23: Driveline Guard
3. Use a slotted screwdriver to rotate ring (A) clockwise to
lock the ring in the guard.
$
Figure 5.24: Driveline Guard
4. Push grease fitting (A) back into the guard.
