MacDon PW8 - Installing Left Endshield

215575 28 Revision B

$
%
&

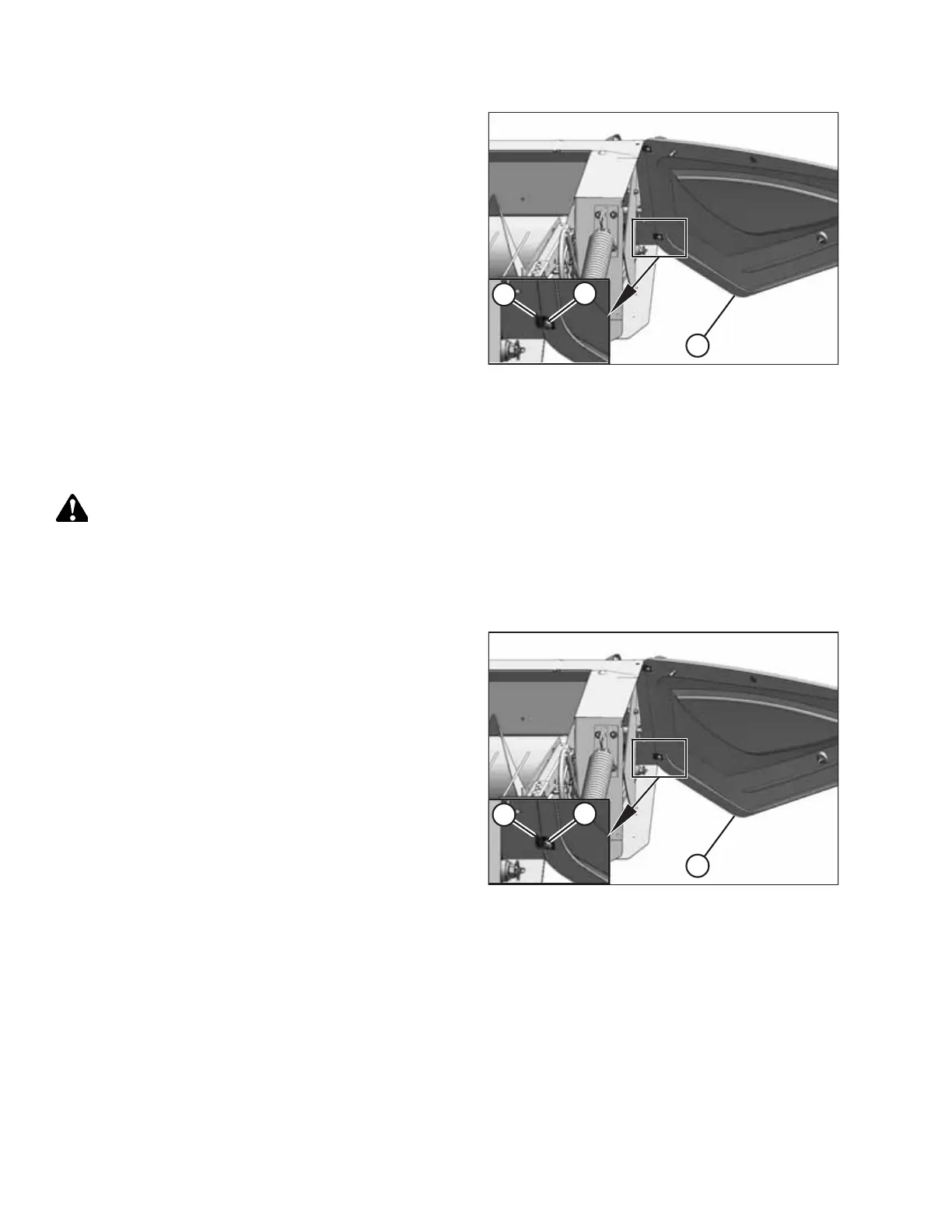

Figure 3.8: Removing Endshield
5. Swing endshield (A) fully backward and loosen nuts (B) on
clips (C) at the back of the endshield so that the clips
disengage from the slots in the header frame.
6. Move endshield (A) away from the header.
3.3.4 Installing Left Endshield
Reinstall the endshield when you are done servicing the left side of the header.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Shut down the engine and remove the key from the ignition.

$
%
&
Figure 3.9: Attaching Endshield
3. Hold endshield (A) up to the frame and insert clips (C) into
the slots in the header frame.
4. Tighten nuts (B) on clips (C) just enough to hold the
endshield in place.
OPERATION
