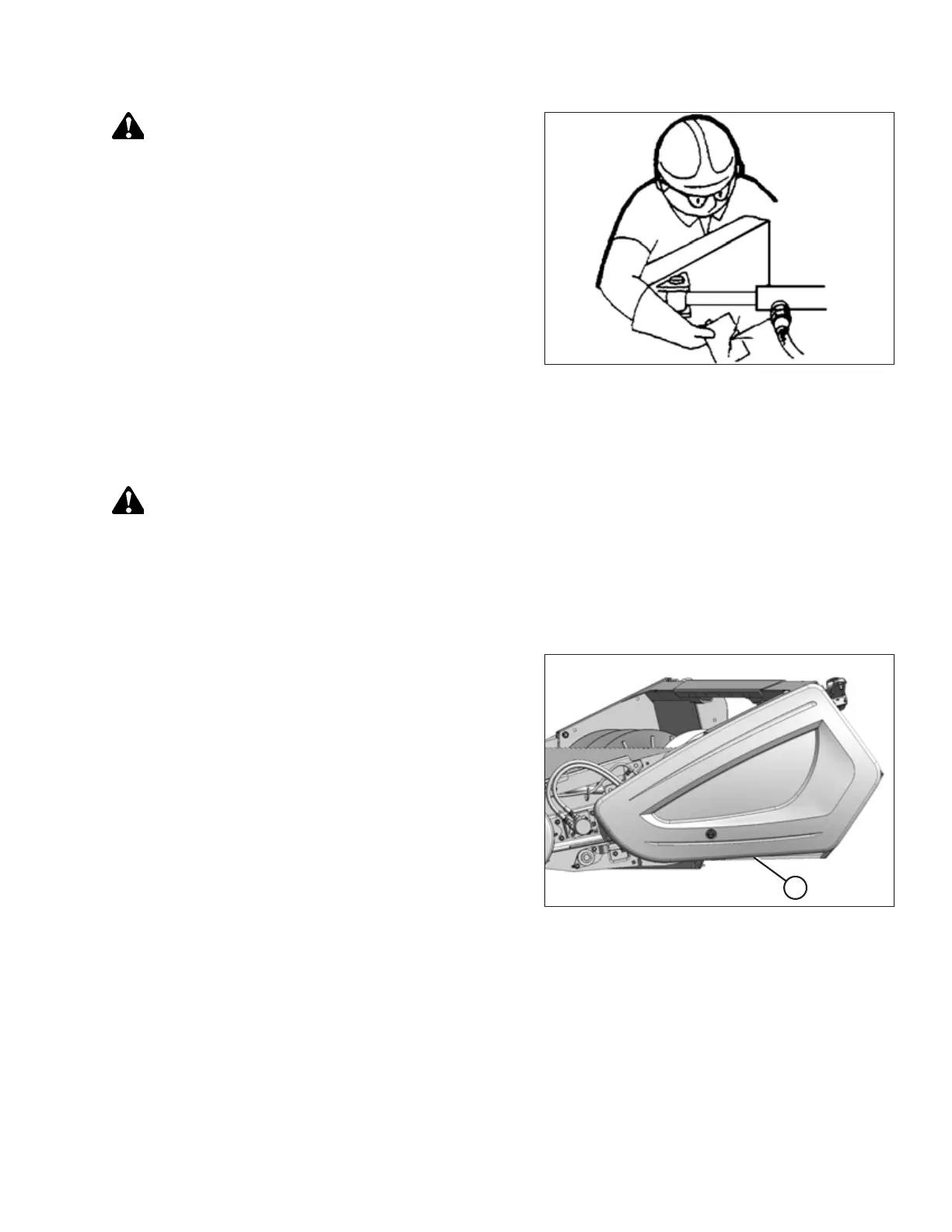

Figure 5.196: Testing for Hydraulic Leaks
WARNING
Use a piece of cardboard or paper to search for leaks.
IMPORTANT:
Keep hydraulic coupler tips and connectors clean. Allowing dirt,
dust, water, or foreign material to enter the hydraulic system is
the major cause of hydraulic system damage. Do NOT attempt to
service hydraulic systems in the field. Overhauls must be
performed in an environment free of dust and debris.
Removing Master Cylinder Hose
Ensure that the ends of the hydraulic hose are kept clean while being removed.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Lower the hold-down completely to release all the hydraulic pressure in the system.
3. Stop the engine and remove the key from the ignition.
Figure 5.197: Left Endshield
4. Open the left endshield (A). For instructions, refer to 3.3.1
Opening Left Endshield, page 25.
MAINTENANCE AND SERVICING
