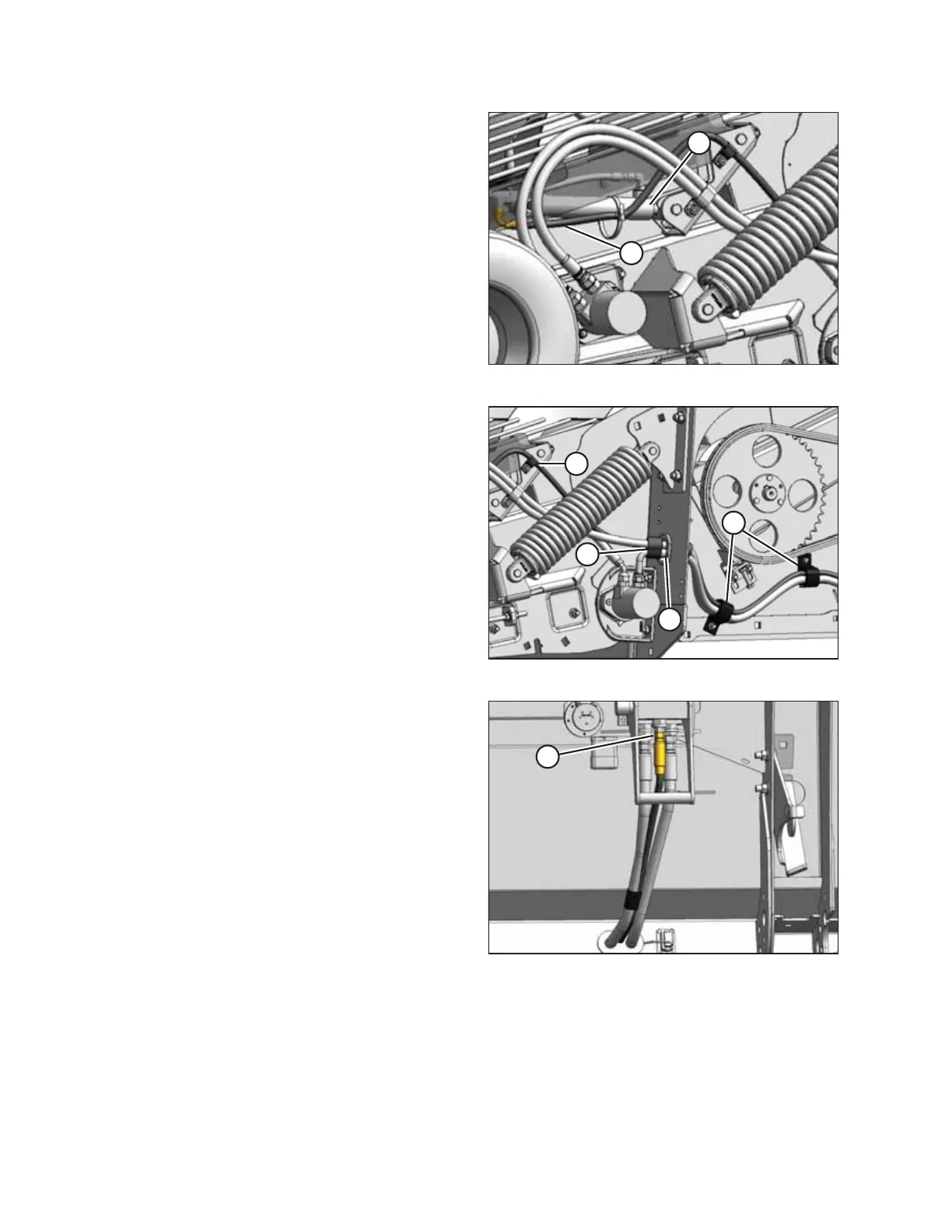

Figure 5.198: Left Master Cylinder
5. Disconnect hydraulic hose (A) from master lift cylinder (B).
Install caps onto the hose ends or wrap the ends with
plastic to prevent contamination.

$
%
&
%
Figure 5.199: Master Cylinder — Left Side of Header
6. Loosen or remove hose clips (A) and undo cinch straps (B).
7. Pull the hydraulic hose through grommet (C).

$
Figure 5.200: Left Backsheet
8. Disconnect hydraulic hose (A) from the multicoupler.
