MacDon PW8 - Detaching Header from New Holland CR;CX Combine

215575 68 Revision B

$
%
&
'
(

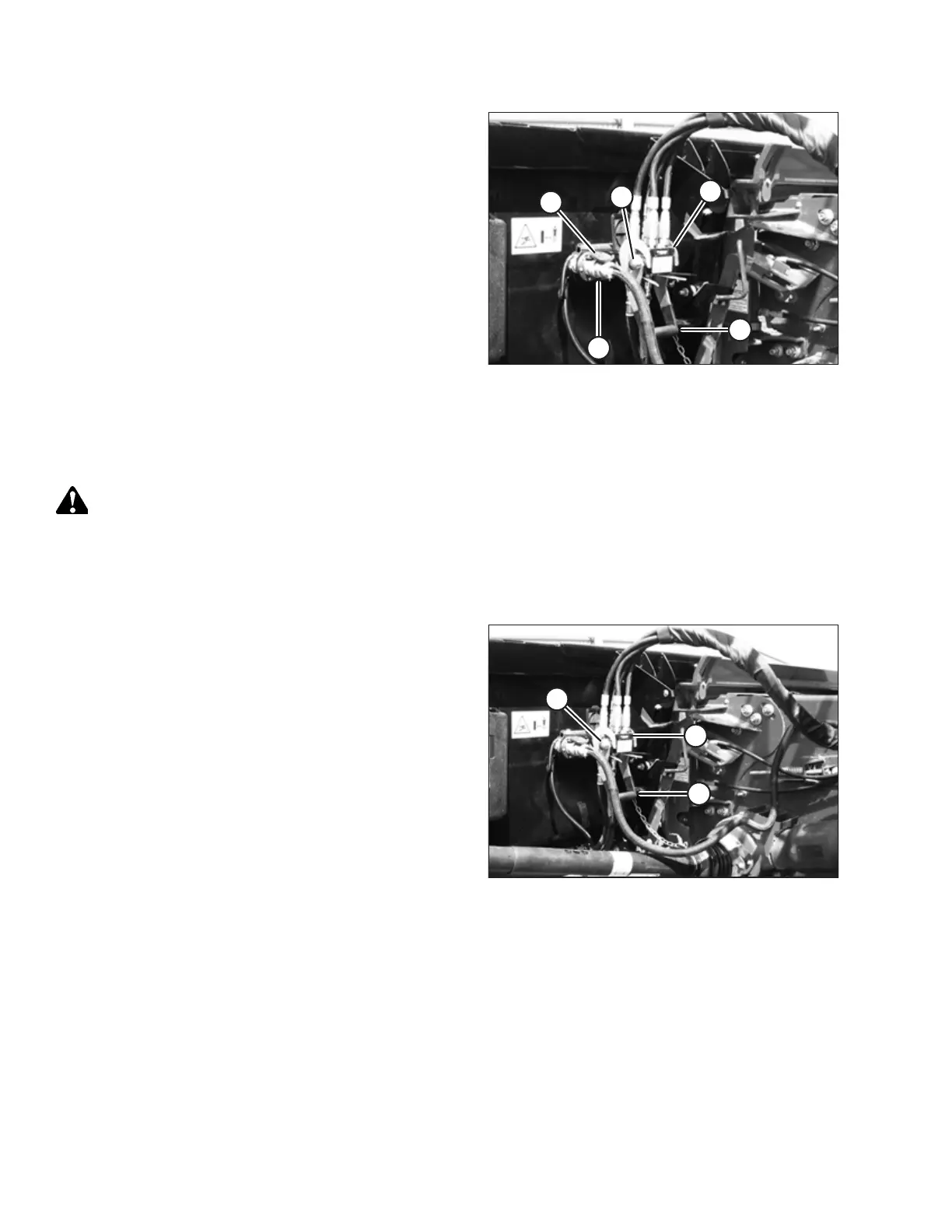

Figure 3.94: Attaching Coupler
15. Position the coupler onto header receptacle (A) and push
handle (B) downward to engage the pins into the
receptacle.
16. Push handle (B) to the closed position until lock button (C)
snaps out.
17. Open cover (D) on the header electrical receptacle.
18. Remove electrical connector (E) from the combine.
19. Align the lugs on electrical connector (E) with the slots in
the header receptacle, push the connector onto the
receptacle, and turn the collar on the connector to lock it
in place.
Detaching Header from New Holland CR/CX Combine
Be sure to place the header driveline on its storage hook when detaching it from a New Holland combine.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Drive the combine to a level area and position the header slightly off the ground.
2. Shut down the engine, and remove the key from the ignition.

$
%
&
Figure 3.95: Releasing Coupler
3. Push in lock button (C), and pull handle (B) upward to
release coupler (A).
4. Remove coupler (A) from the header receptacle.
OPERATION
