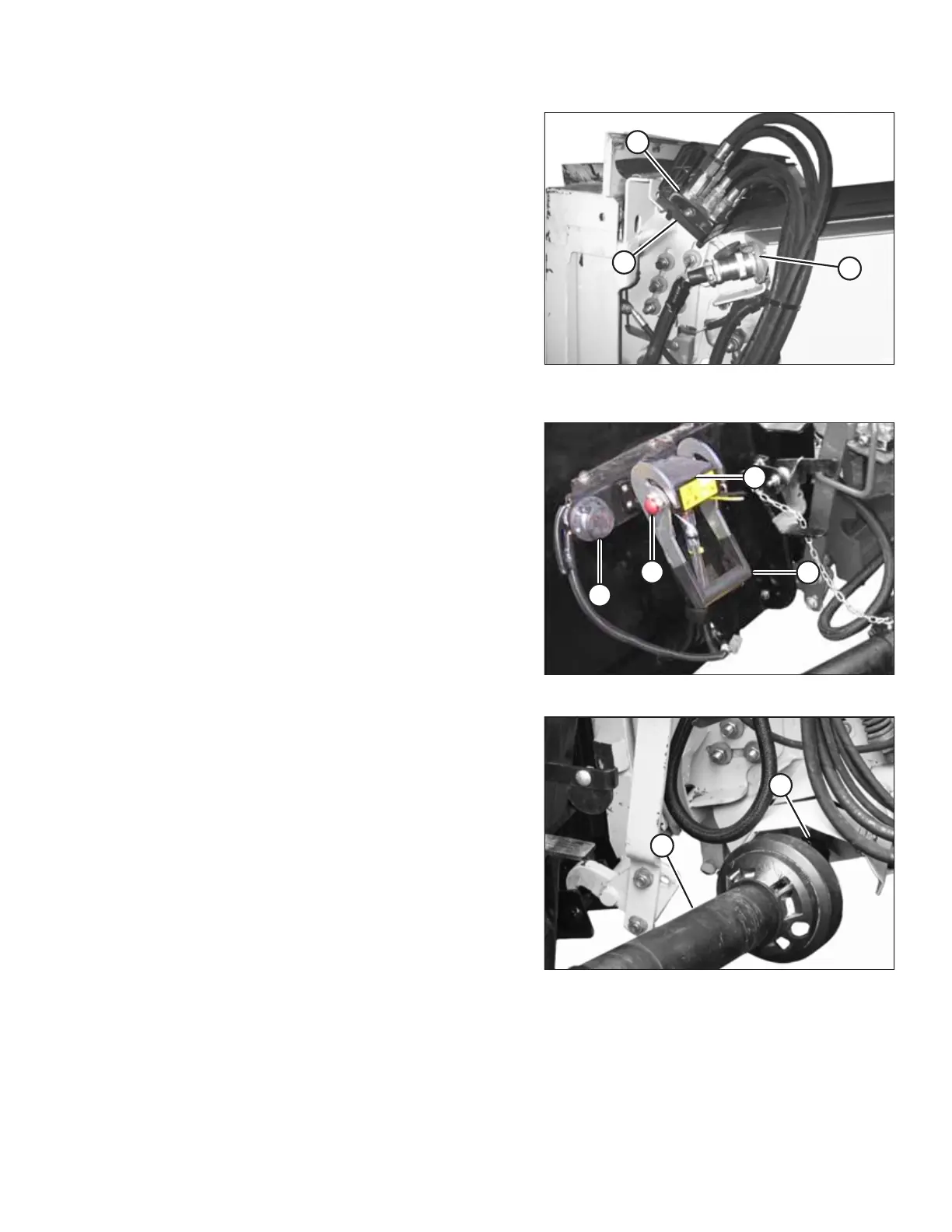

Figure 3.96: Coupler and Electrical Connector Storage
Location
5. Position coupler (A) onto storage plate (B) on the combine.
6. Disconnect the electrical connector from the header, and
place in storage cup (C) on the combine.
Figure 3.97: Locking Multicoupler
7. Close cover (A) on the header hydraulic receptacle, and
cover (B) on the electrical receptacle.
8. Push handle (C) on the header down into the storage
position until lock button (D) snaps out.
Figure 3.98: Detaching Driveline
9. Pull back collar (A) on driveline (B) and remove the
driveline from the combine.
