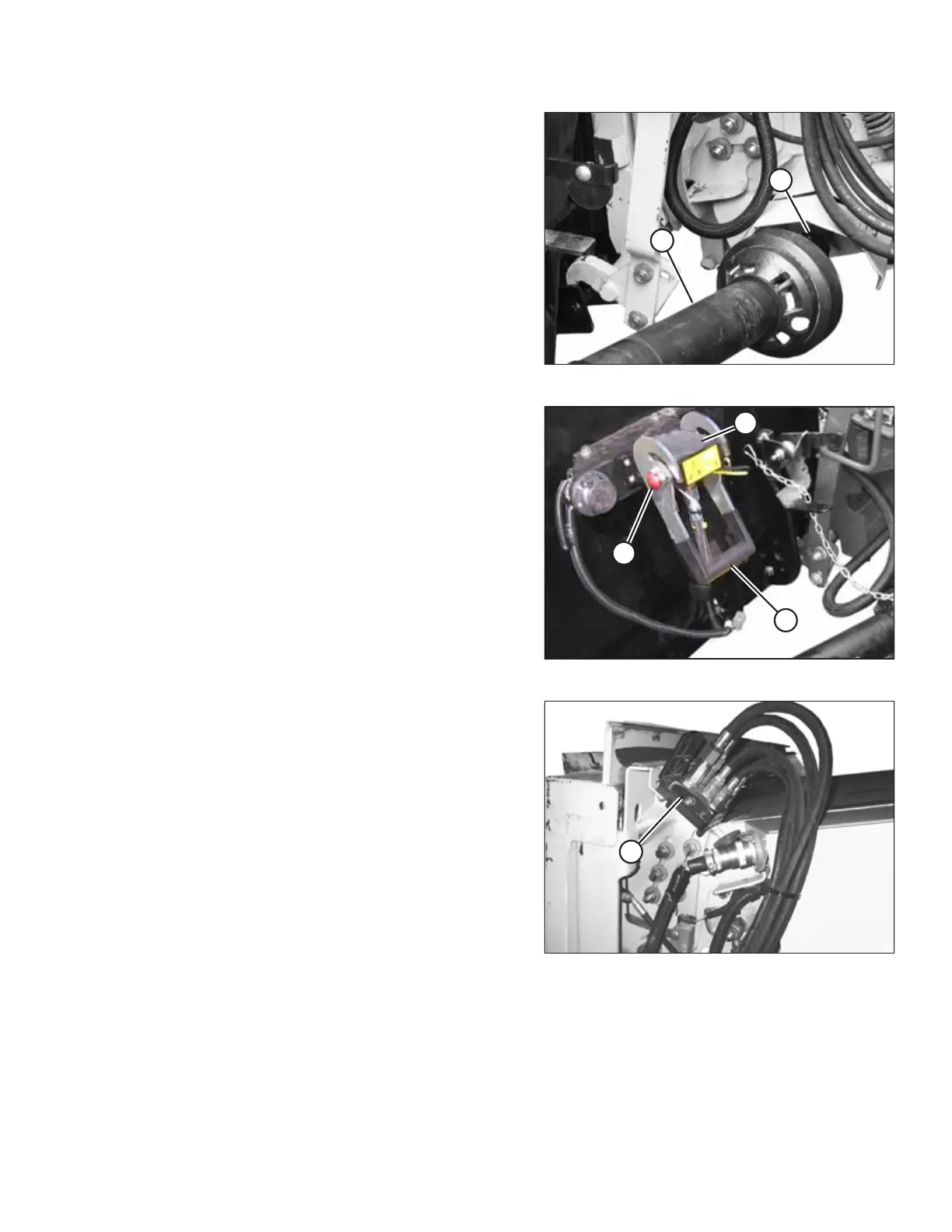

Figure 3.91: Attaching Driveline
11. Pull back collar (B) on the end of the driveline and push it
onto combine output shaft (A) until the collar locks.
Figure 3.92: Header Receptacle
12. Open cover (A).
13. Push in lock button (B) and pull handle (C) halfway up to
the open position.
Figure 3.93: Combine Coupler/Connector
14. Remove coupler (A) from its storage position on the
combine. Clean the mating surface of the coupler.
