5. Shut down the engine, and remove the key from
the ignition.
$
%
&
'
&
(
)

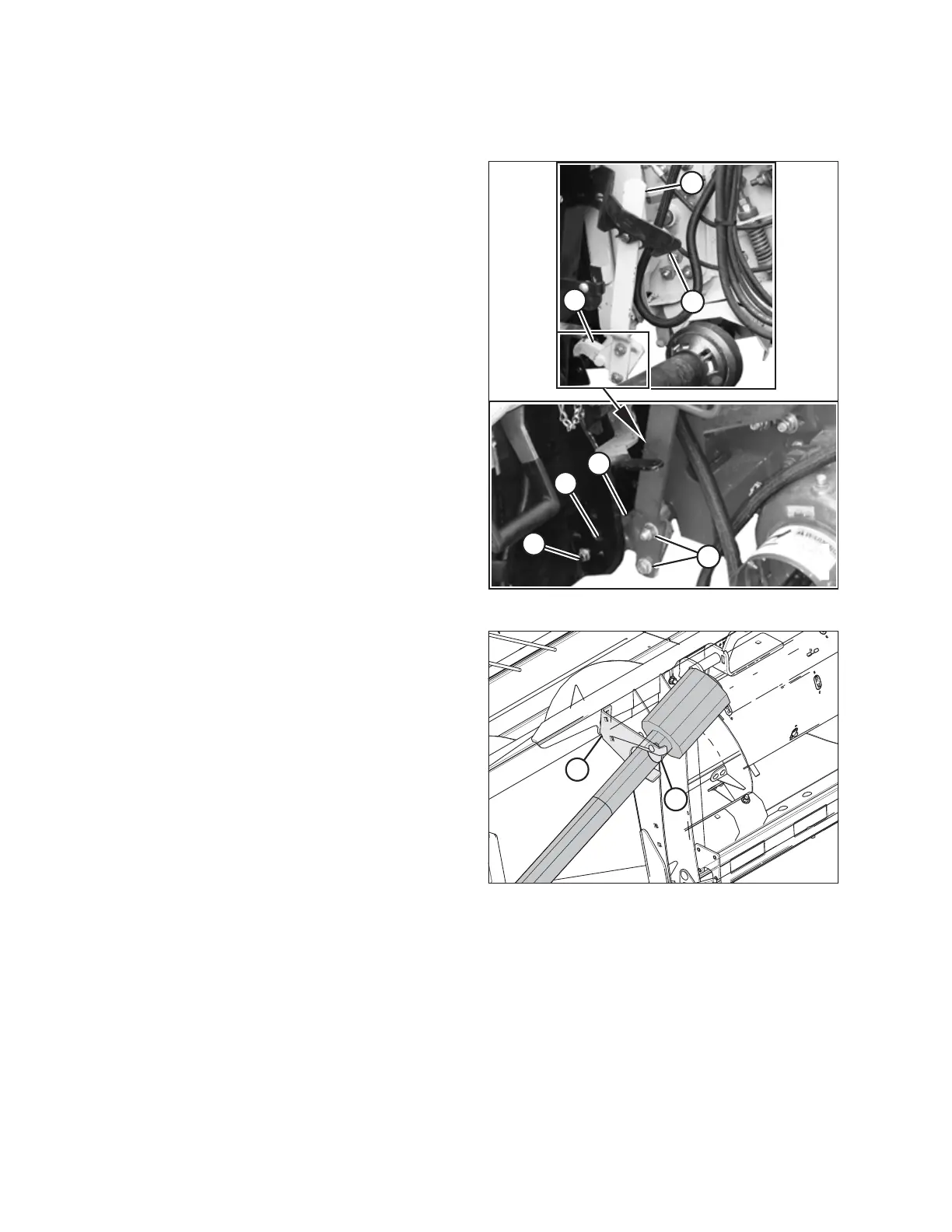

Figure 3.89: Engaging Locks
6. Lift lever (A) on the left side of the header’s feeder house
and push handle (B) on the combine so that hooks (C)
engage pins (D) on both sides of the feeder house.
7. Push down on lever (A) so that the slot in the lever engages
handle (B).
8. If locks (C) do not fully engage pins (D) on the header,
loosen nut (E) and adjust the position of pin (D) on both
sides of the feeder house as needed. Tighten nut (E).
9. Loosen bolts (F) and adjust the lock as needed to fully lock
pin (D) when lift lever (A) and handle (B) are engaged.
Retighten bolts (F).
$
%
Figure 3.90: Driveline in Storage Position
10. Rotate disc (B) on header driveline storage hook (A) and
remove the driveline from the hook.
