MacDon PW8 - Wheels and Tires

215575 298 Revision B

$
%
&
'

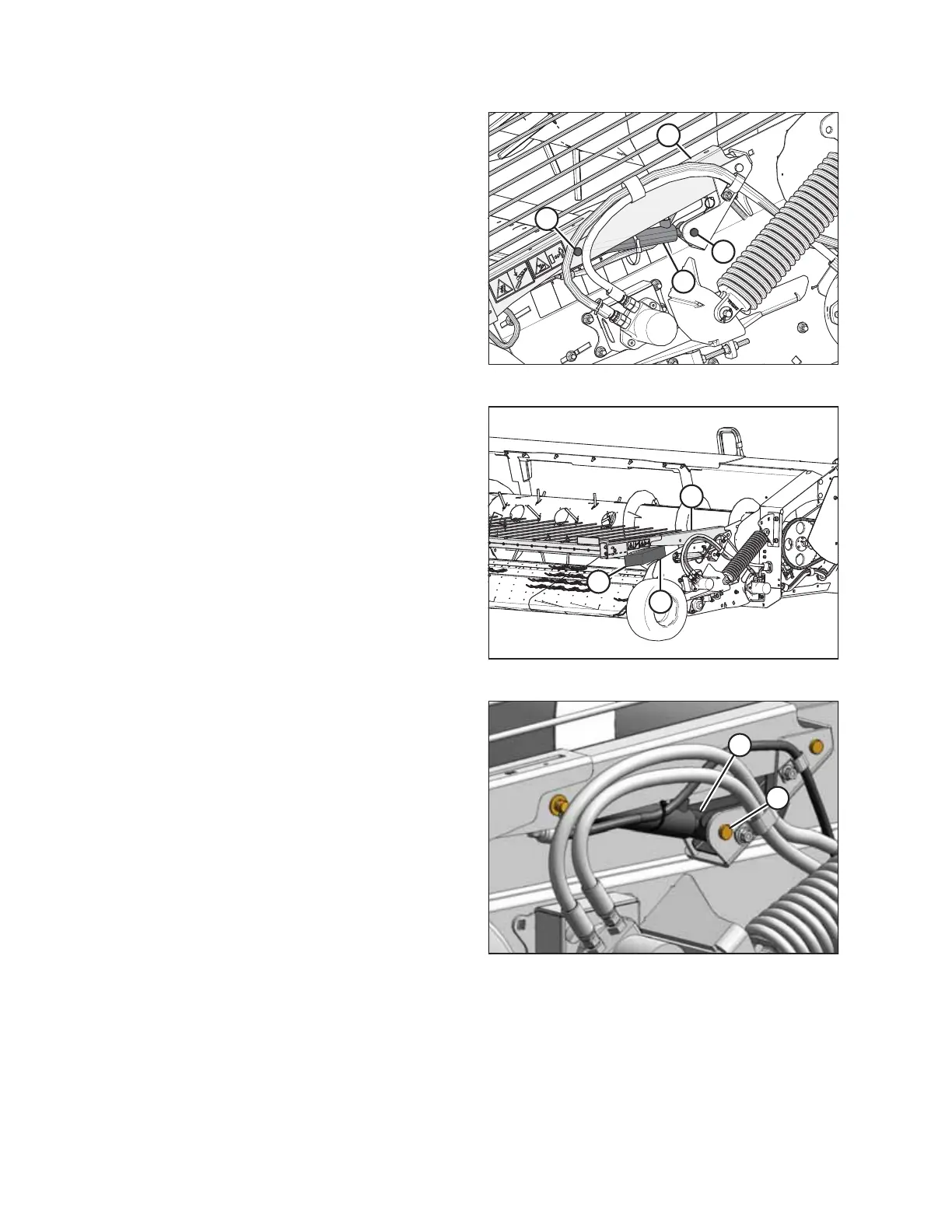

Figure 5.179: Master Cylinder — Left Side of Header
4. Remove the cotter pins and washers from clevis pins (B)
and (D).
5. Raise hold-down (C) by hand and use a prop device to
support the hold-down. This will take the weight off of
master cylinder (A).
6. Remove clevis pin (D) at barrel end of the master cylinder.
The master cylinder will drop from the hold-down arm.

$
%
&
Figure 5.180: Block Location
7. Insert block of wood (A) between hold-down arm (B) and
header (C) to keep the hold-down elevated and clear of the
work area.

$
%
Figure 5.181: Master Cylinder — Left Side of Header
8. Remove clevis pin (A) at the rod end of the master cylinder
and remove cylinder and safety prop (B).
MAINTENANCE AND SERVICING
