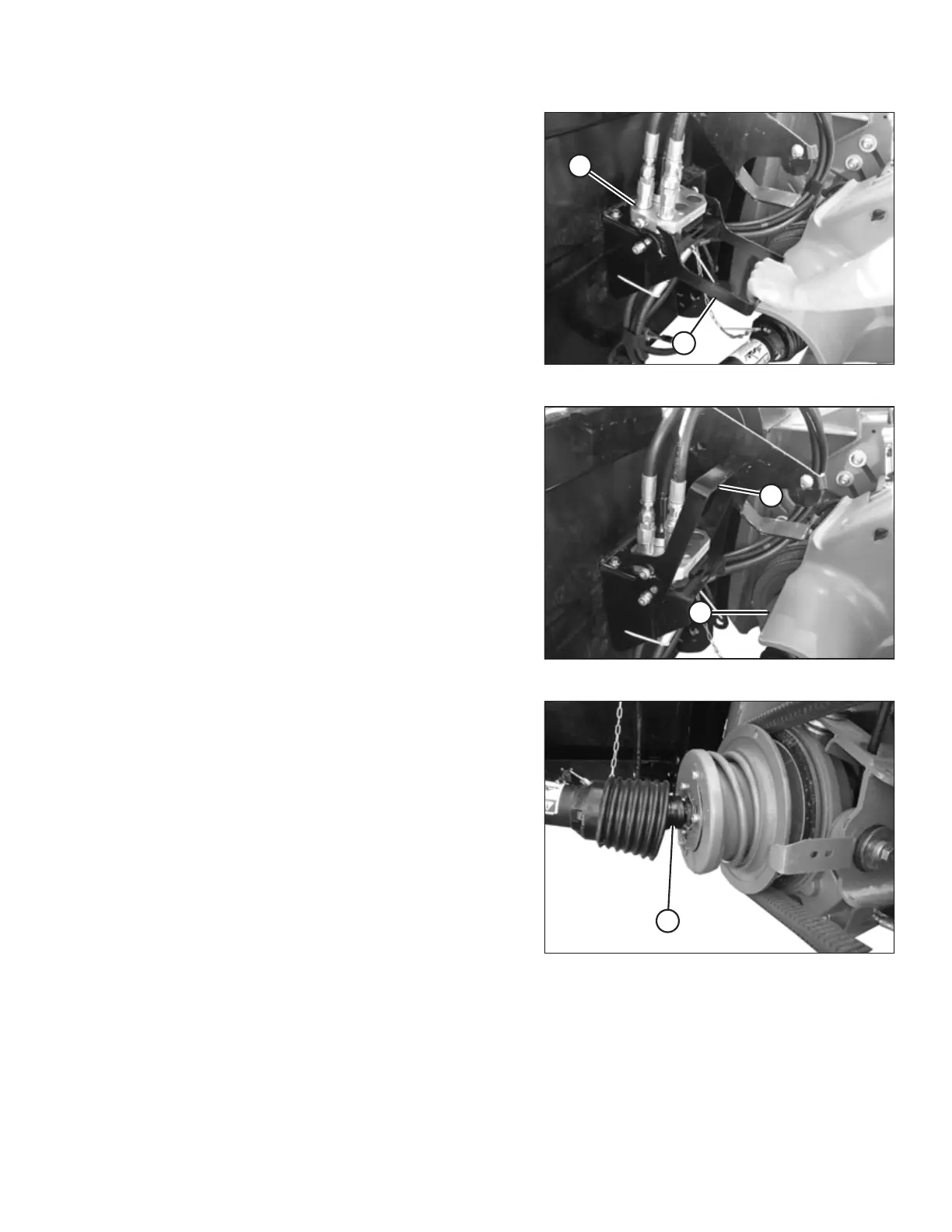

Figure 3.82: Replacing Coupler
4. Lower handle (A) on the header, and position coupler (B)
onto the header as shown.
Figure 3.83: Locking Coupler
5. Raise handle (A) to lock the coupler.
6. Open feeder house driveshield (B).
Figure 3.84: Detaching Driveline
7. Pull back collar (A) on the driveline, and remove the
driveline from the combine output shaft.
