MacDon PW8 - Page 98

215575 82 Revision B

$

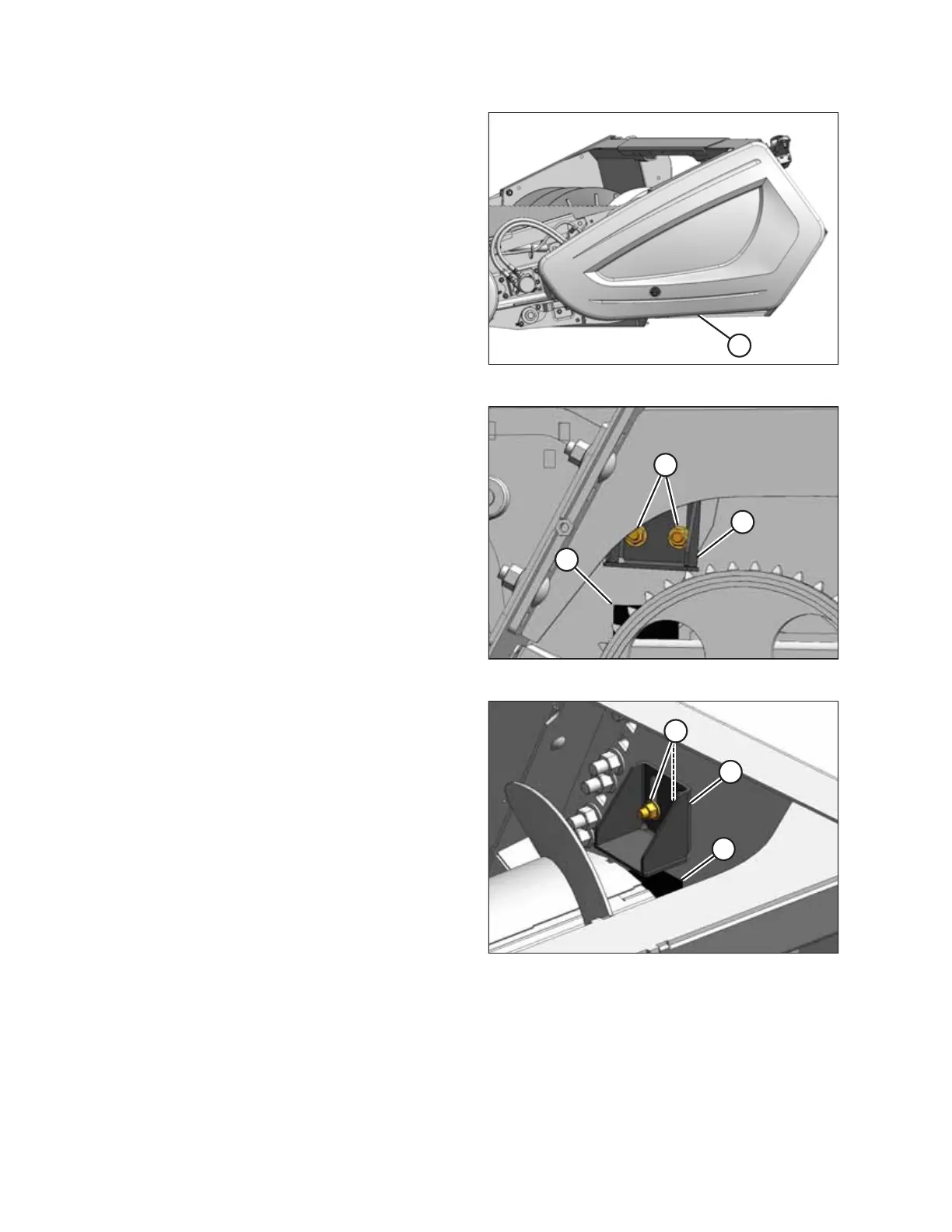

Figure 3.125: Left Endshield
3. Open left endshield (A). For instructions, refer to 3.3.1
Opening Left Endshield, page 25.
4. Remove the right endshield. For instructions, refer to 3.3.5
Removing Right Endshield, page 30.

$
%
&
Figure 3.126: Left Stop
5. Loosen two bolts (A) on auger upstops (B) on the left side
of the header.
6. Slide stops (B) downward until they contact the rubber
blocks (C) on the auger arm.
7. Tighten bolts (A).

%
&
$
Figure 3.127: Right Stop
8. Loosen two bolts (A) on auger upstops (B) on the right side
of the header.
9. Slide stops (B) downwards until they contact rubber blocks
(C) on the auger arm.
10. Tighten bolts (A).
OPERATION
