215575 83 Revision B

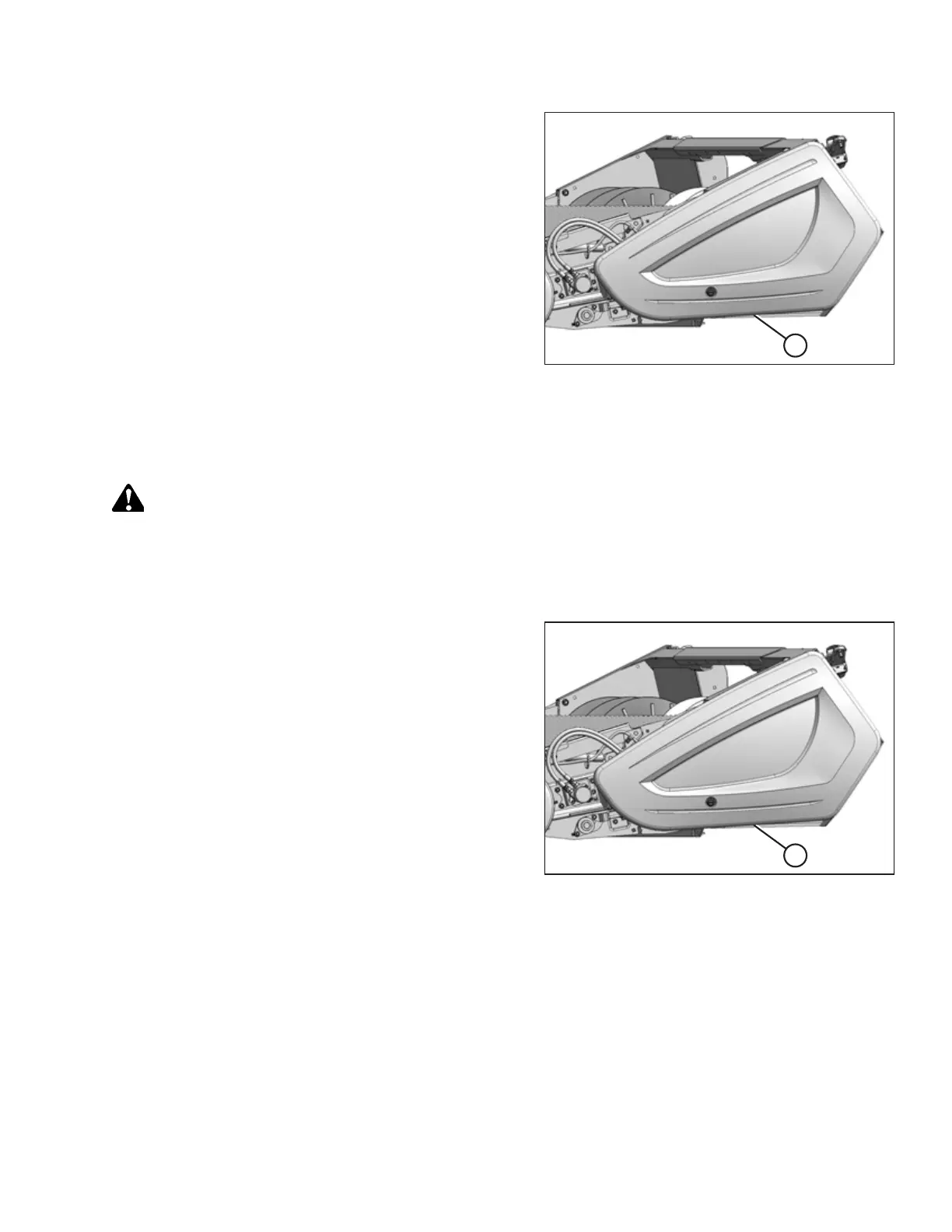

Figure 3.128: Left Endshield
11. Close left endshield (A). For instructions, refer to 3.3.2
Closing Left Endshield, page 26.
12. Install the right endshield. For instructions, refer to 3.3.6
Installing Right Endshield, page 30.
Unlocking Auger Float
By moving the upstop blocks, the float height of the auger can be set to the desired range.
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop the engine and remove the key from
the ignition before leaving the operator’s seat for any reason.
1. Lower the header to the ground.
2. Shut down the combine and remove the key from the ignition.
Figure 3.129: Left Endshield
3. Open left endshield (A). For instructions, refer to 3.3.1
Opening Left Endshield, page 25.
4. Remove the right endshield. For instructions, refer to 3.3.5
Removing Right Endshield, page 30.
OPERATION
