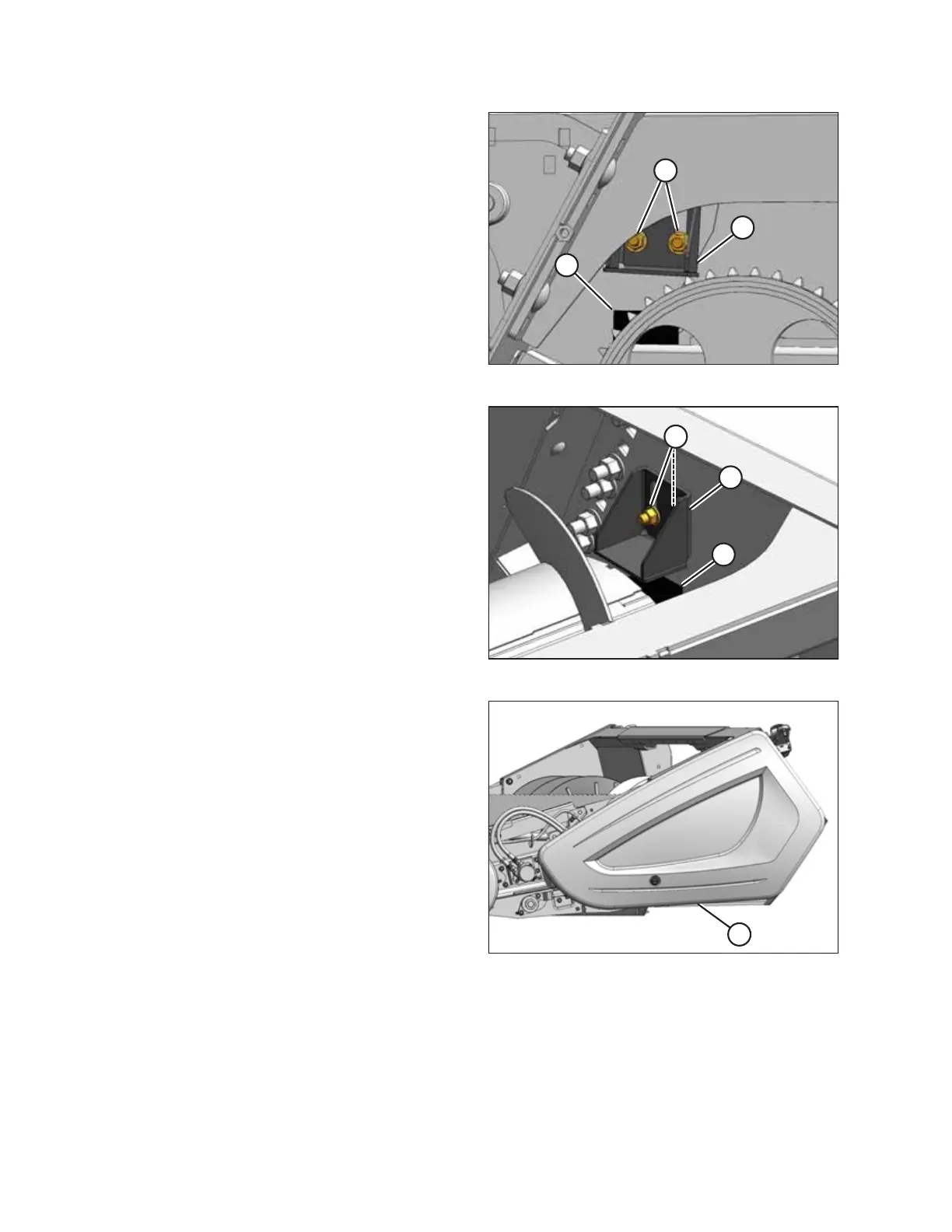

Figure 3.130: Left Stop
5. Loosen two bolts (A) on auger upstops (B) at the left side of
header.
6. Slide stops (C) upwards. The height of the stop determines
the float range of the auger.
7. Tighten bolts (A).

%
&
$
Figure 3.131: Right Stop
8. Loosen two bolts (A) on auger upstops (B) at the right side
of the header.
9. Slide stops (C) upwards. The height of the stop determines
the float range of the auger.
10. Tighten bolts (A).

$
Figure 3.132: Left Endshield
11. Close left endshield (A). For instructions, refer to 3.3.2
Closing Left Endshield, page 26.
12. Install the right endshield. For instructions, refer to 3.3.6
Installing Right Endshield, page 30.
