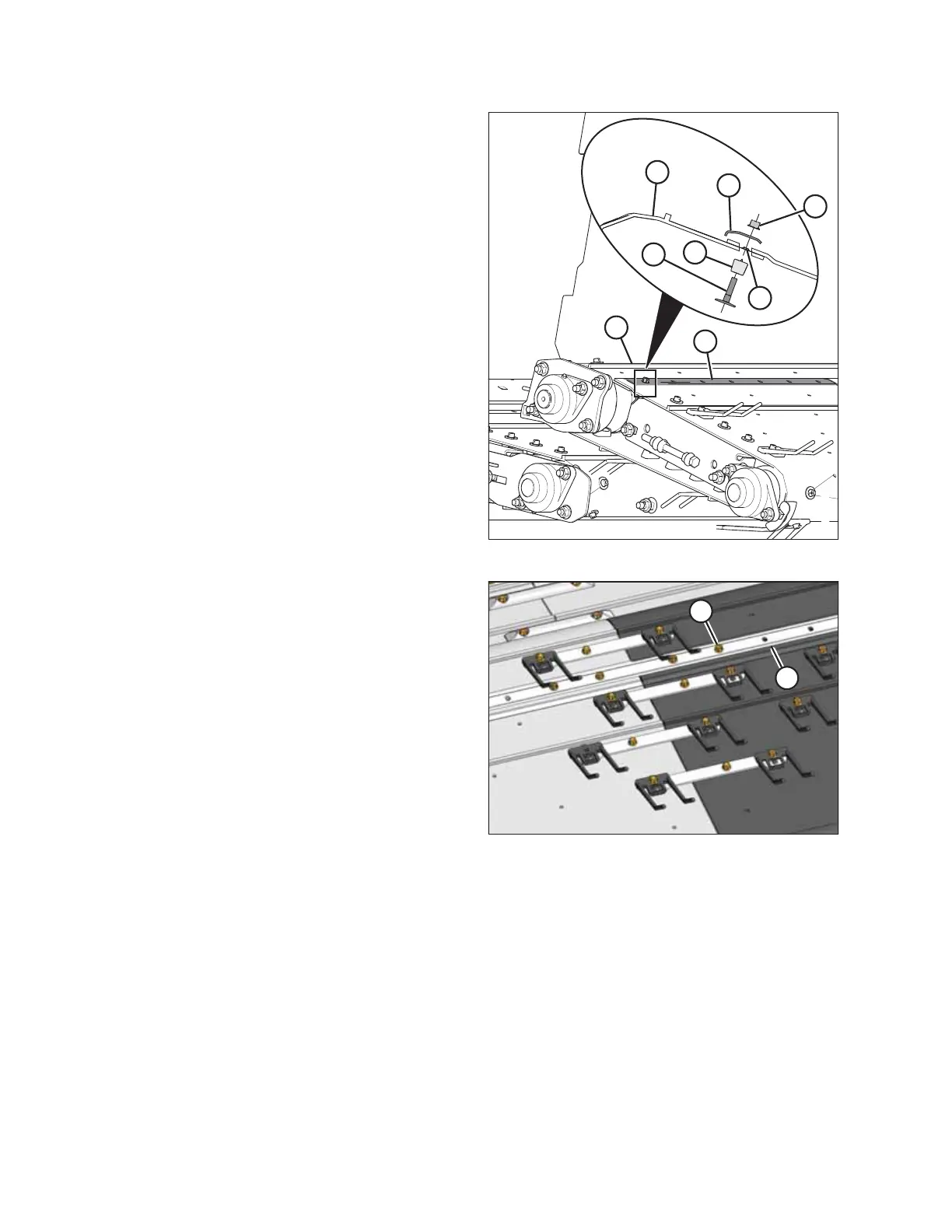

Figure 5.98: Rear Draper Belt End
2. Overlap and connect the ends of draper belt (A) using
M6 x 15 1/2 pronged elevator bolt (F) and guide (E). Place
retainer (D) on bolt (F) between the layers of the draper
belt where they overlap.
NOTE:
Parts have been removed from the illustration to show
clearly the removal order of the hardware and the draper
belt interior.
3. Align edge protector (B) over bolts (F) at the belt overlap
and secure it with M6 flange nuts (C).
4. Torque M6 flange nuts (C) to 4–5.6 Nm (37–50 lbf∙in).
$
%
Figure 5.99: Front Draper Belt
5. Install connector bars (A) onto the draper belt using
pronged elevator bolts, and secure it with M6 flange
nuts (B).
6. Torque M6 flange nuts (B) to 4–5.6 Nm (37–50 lbf∙in).
