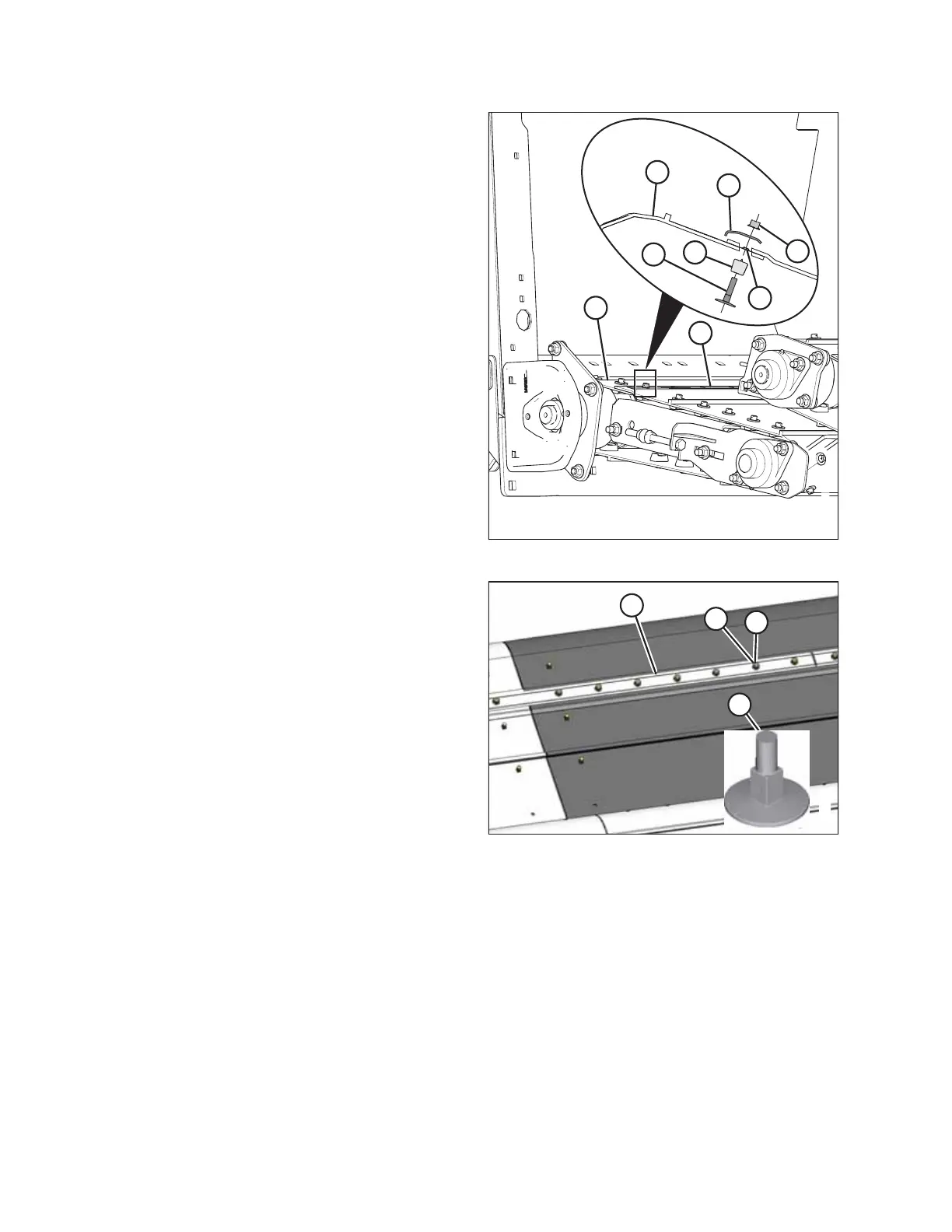

Figure 5.105: Rear Draper Belt End
2. Overlap and connect the ends of draper belt (A) using
M6 x 15 1/2 pronged elevator bolt (B) and guide (C). Place
retainer (D) on bolt (B) between the layers of draper belt
where they overlap.
NOTE:
Parts have been removed from the illustration to show
clearly the removal order of the hardware and the draper
belt interior.
3. Align edge protector (E) over bolts (B) where the belt
overlaps and secure it with M6 flange nuts (F).
4. Torque M6 flange nuts (E) to 4–5.6 Nm (37–50 lbf∙in).
$
%
&
&
Figure 5.106: Rear Draper Belt
5. Install pronged elevator bolts (C) along the edge of the
draper belt, and secure it with edge protector (A) and M6
flange nuts (B).
6. Torque M6 flange nuts (B) to 4–5.6 Nm (37–50 lbf∙in).
