215575 39 Revision B

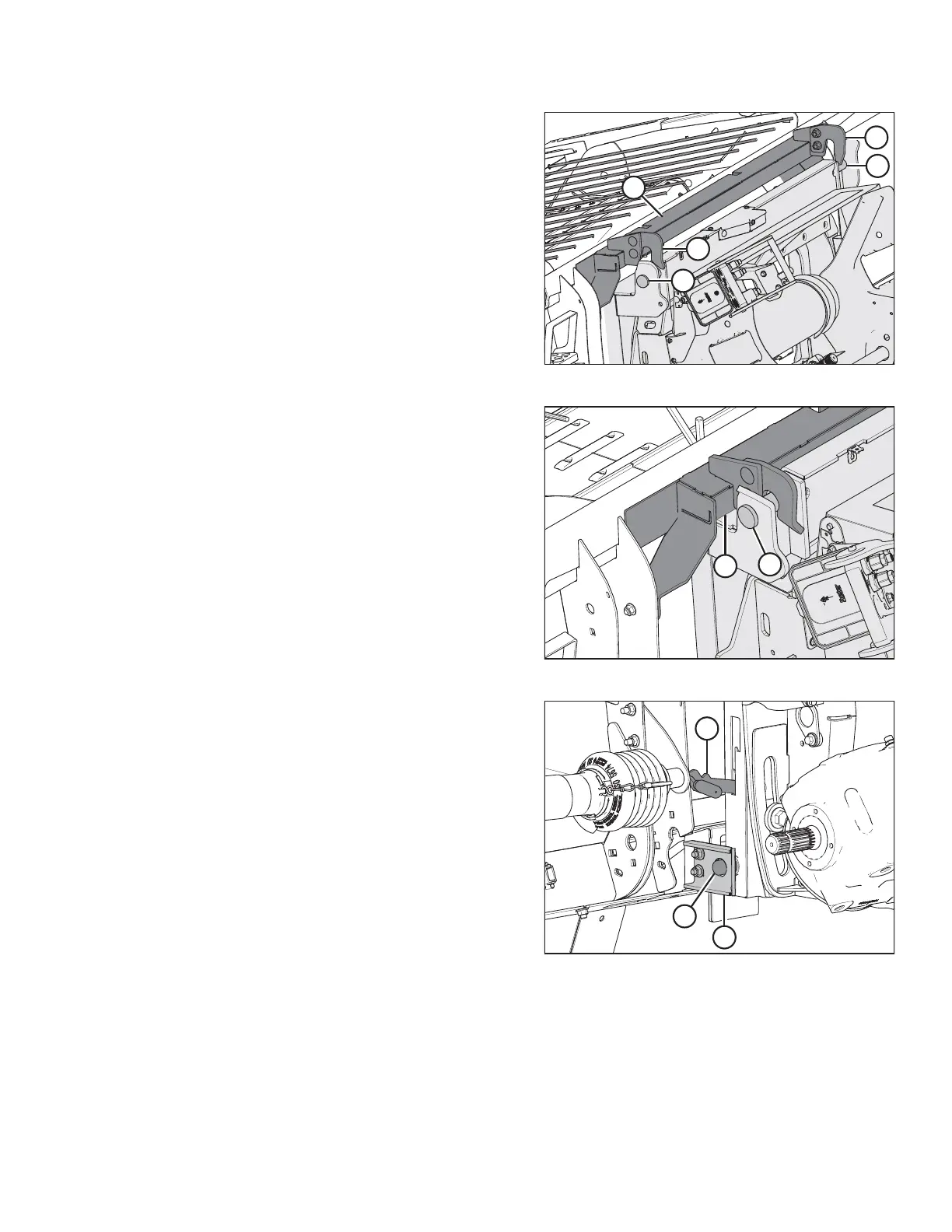

Figure 3.20: Feeder House
3. Drive the combine slowly up to the header until the feeder
house is directly under top beam (A), and pins (B) are under
hooks (C).
Figure 3.21: Top Beam Resting on Feeder House
4. Raise the feeder house until transition frame top beam (A)
is fully resting on the feeder house. Raise the header
slightly off of the ground.
IMPORTANT:
The full weight of the header must be on the feeder house,
NOT on pins (B).
Figure 3.22: Feeder House Locking Pins
5. Position the bottom of the feeder house so that locking
pins (A) align with the holes in mounts (C).
6. Shut down the engine, and remove the key from
the ignition.
7. Push lever (B) down to extend locking pins (A) so that they
engage with mounts (C).
OPERATION
