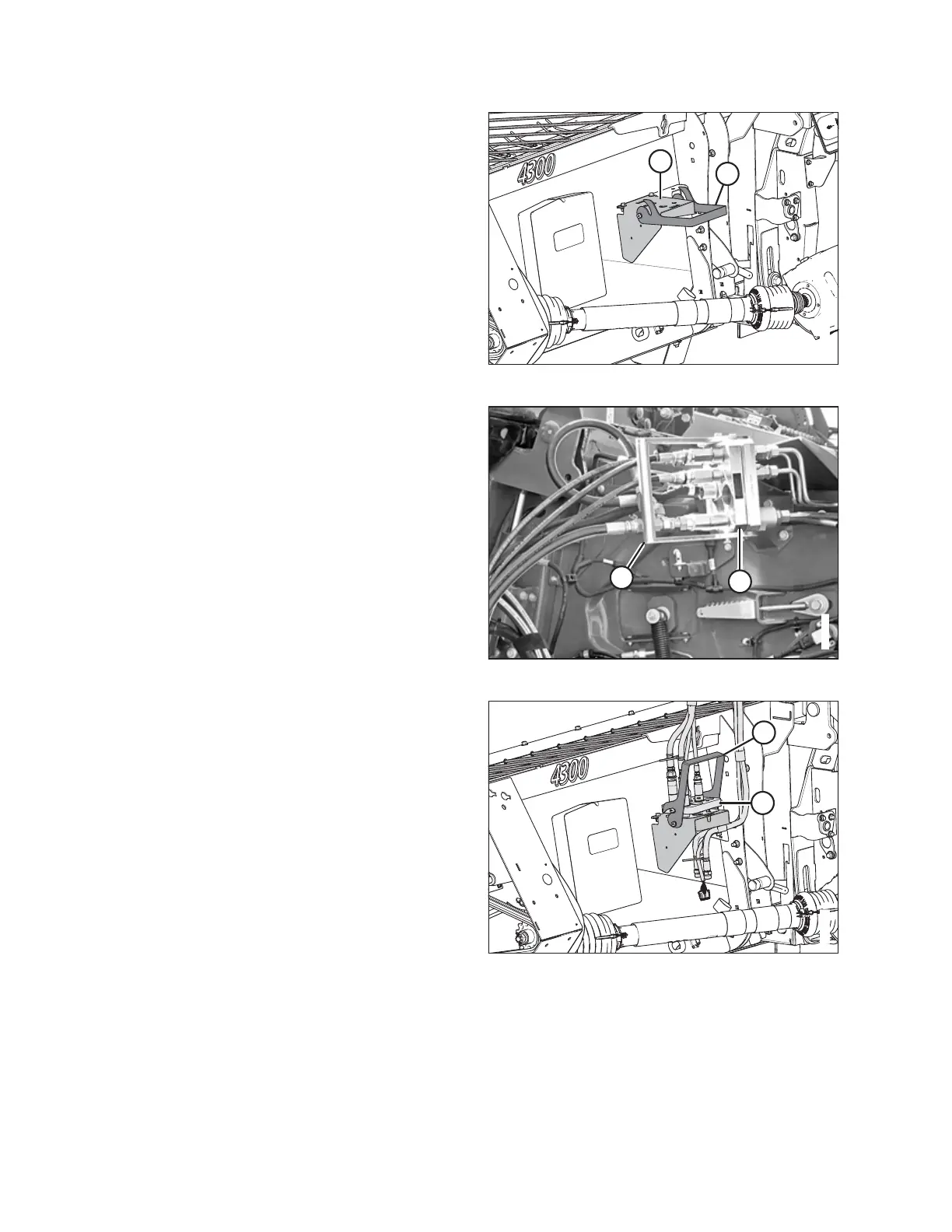

Figure 3.28: Header Receptacle
3. Lower handle (A) on header receptacle (B).

$
%
Figure 3.29: Combine Receptacle
4. Push combine receptacle handle (B) to the fully open
position to release multicoupler (A).

$
%
Figure 3.30: Locking Multicoupler
5. Position multicoupler (B) onto the header receptacle, and
move handle (A) to the vertical position to lock the
multicoupler.
