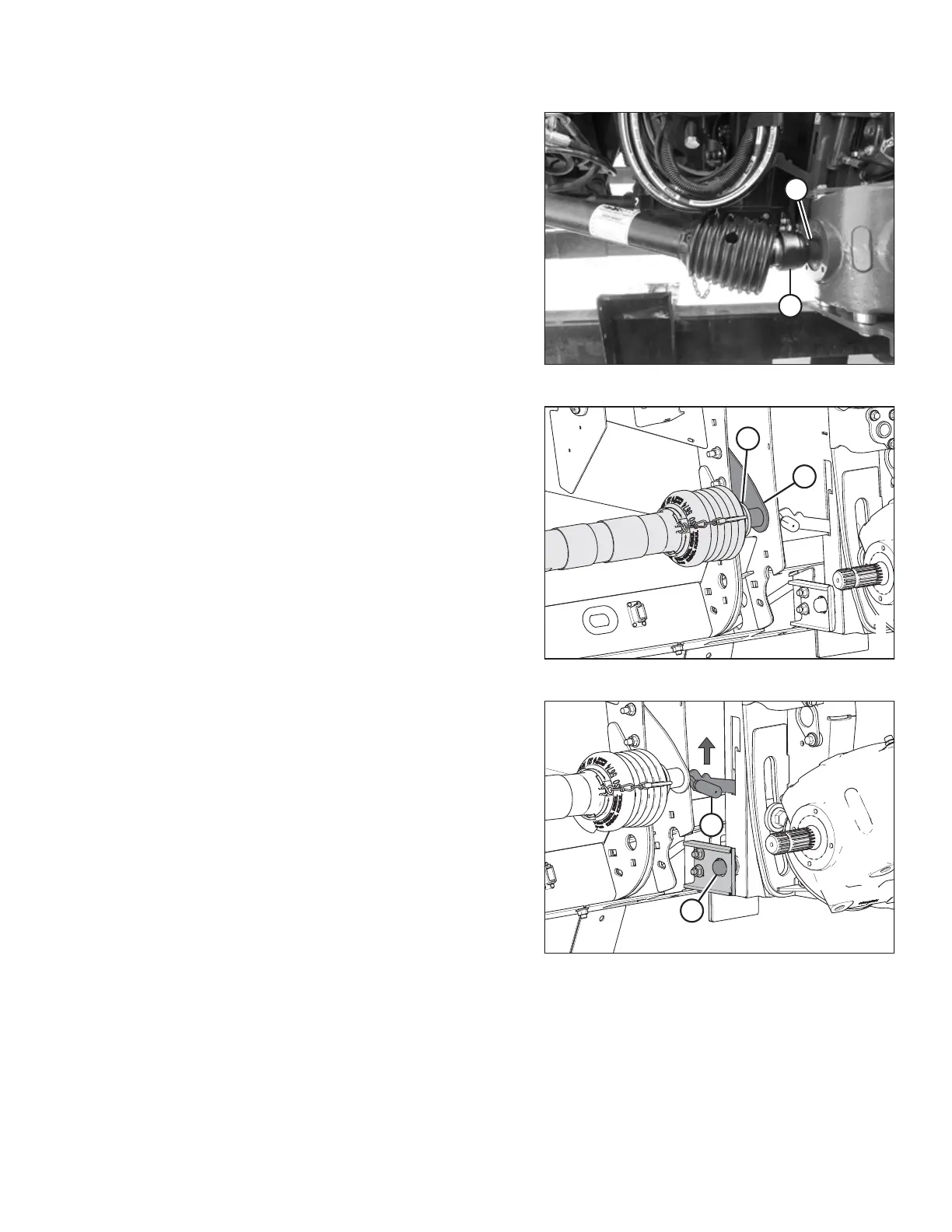

Figure 3.31: Detaching Driveline
6. Open the combine output shaft cover.
7. Pull back driveline collar (A) and remove the driveline from
combine output shaft (B).
Figure 3.32: Driveline in Storage Position
8. Pull back collar (A) on the end of the driveline and push
onto storage bracket (B) until the collar locks.
9. Close the combine output shaft cover.
Figure 3.33: Feeder House Locking Pins
10. Pull lever (A) up to retract pins (B) at the base of the
feeder house.
