2. Start the engine.

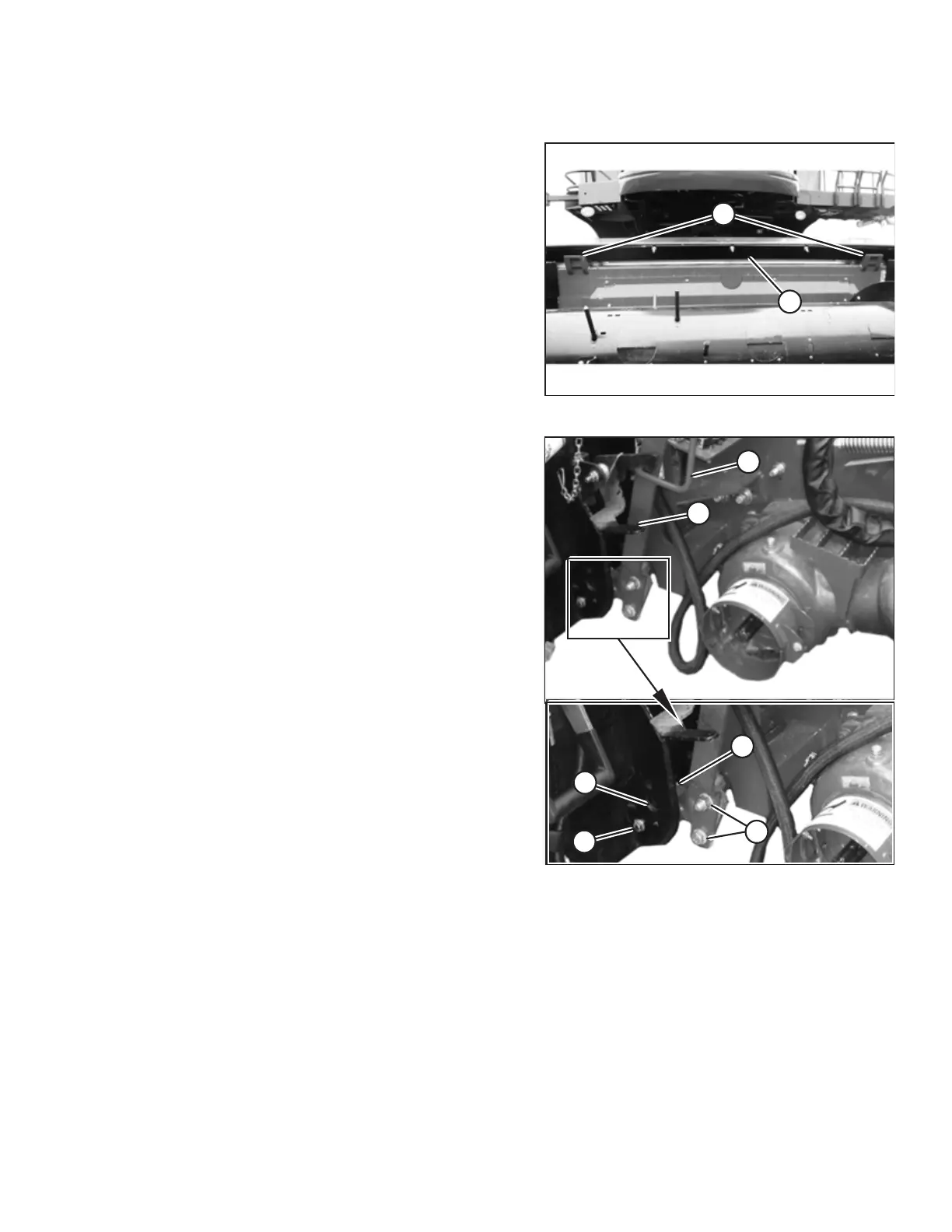

Figure 3.36: Header on Combine
3. Drive the combine slowly up to the header until feeder
house saddle (A) is directly under header top beam (B).
4. Raise the feeder house slightly to lift the header, ensuring
that feeder house saddle (A) is properly engaged in the
header frame.
5. Shut down the engine, and remove the key from
the ignition.
Figure 3.37: Engaging Locks
6. Lift lever (A) on the header at the left side of the feeder
house and push handle (B) on the combine to engage
locks (C) on both sides of the feeder house.
7. Push down on lever (A) so that the slot in the lever engages
handle (B). This will lock the handle in place.
8. If locks (C) do not fully engage with the spacer tube and the
bolt on the header, loosen nut (E) and adjust the position of
the spacer tube and bolt (D) as necessary (on both sides of
the header). Tighten the nut.
9. Loosen bolts (F) and adjust the lock as needed to obtain a
full lock on spacer tube and bolt (D) when lift lever (A) and
handle (B) are engaged. Retighten the bolts.
