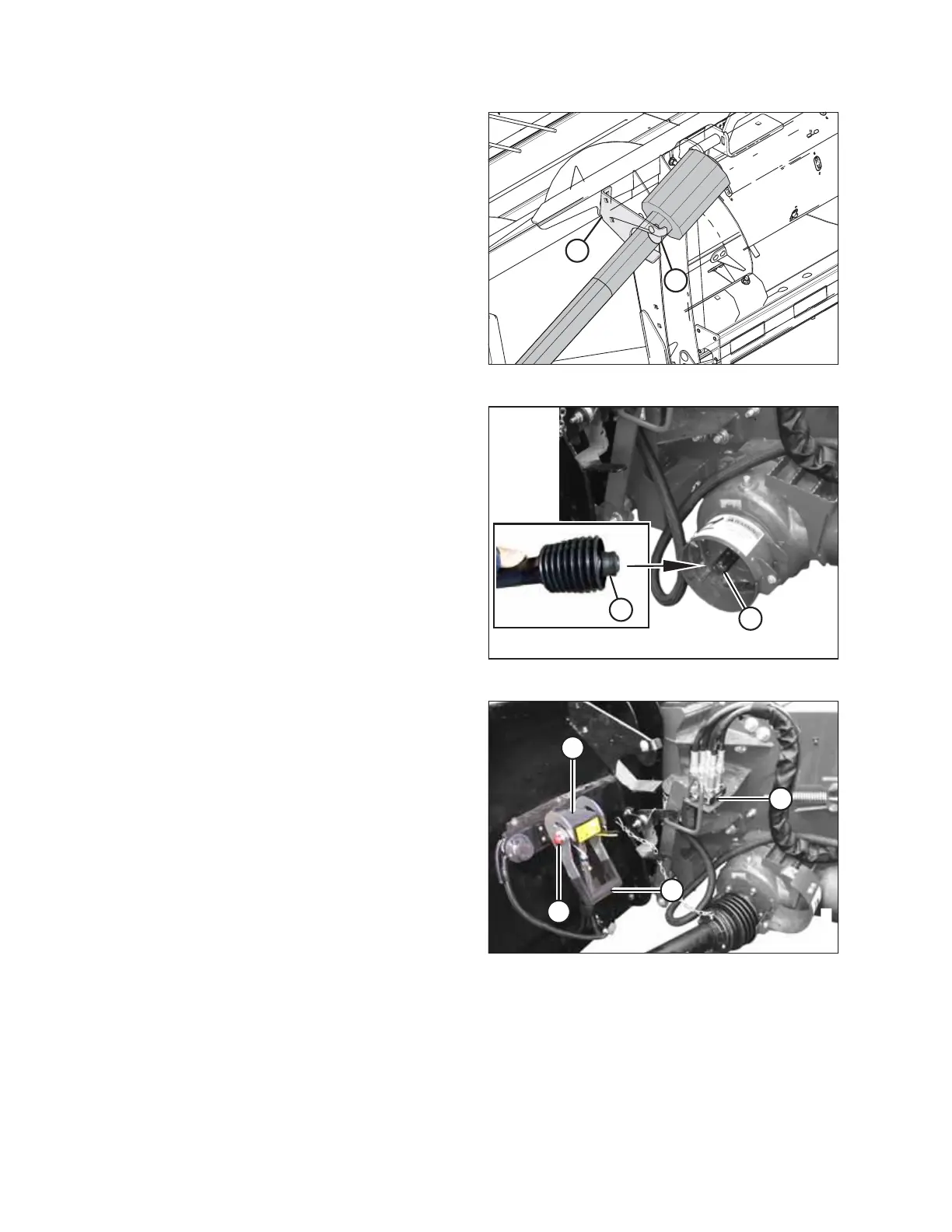

Figure 3.38: Driveline in Storage Position
10. Rotate disc (B) on header driveline storage hook (A) and
remove the driveline from the hook.
$
%
Figure 3.39: Attaching Driveline
11. Pull back collar (A) on the end of the driveline and push it
onto combine output shaft (B) until the collar locks.
$
%
&
'
Figure 3.40: Coupler Lock
12. Open cover (A) on the header receptacle.
13. Push in lock button (B) and pull handle (C) upward to the
fully open position.
14. Remove coupler (D) from the combine and clean the
mating surfaces.
