MacDon PW8 - Lights Maintenance

215575 301 Revision B

$
%
&
'

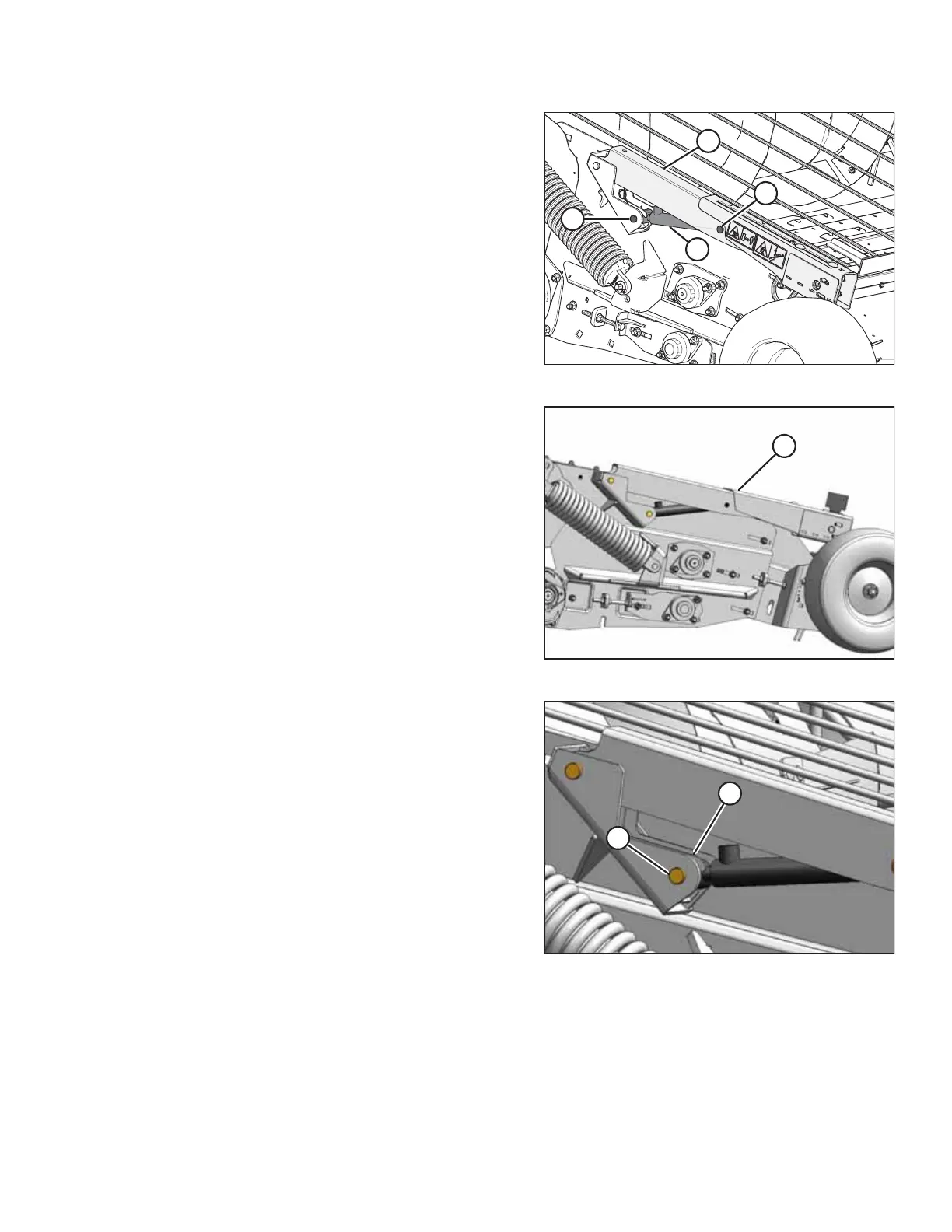

Figure 5.186: Slave Cylinder — Right Side of Header
4. Stop the engine and remove the key from the ignition.
5. Remove the cotter pins and washers from clevis pins (B)
and (D).
6. Raise hold-down (C) by hand and use a prop device to
support the hold-down and take the weight off of slave
cylinder (A).
7. Remove clevis pin (D) at the barrel end of the slave cylinder.
The slave cylinder will swing down from the hold-
down arm.

$
Figure 5.187: Hold-Down Arm — Right Side of Header
8. Use a lifting device to lift and support hold-down arm (A).

$
%
Figure 5.188: Slave Cylinder Safety Prop Connection—
Right Side of Header
9. Remove clevis pin (A) from the safety prop at the rod end
of the slave cylinder. Remove the slave cylinder from safety
prop (B).
MAINTENANCE AND SERVICING
