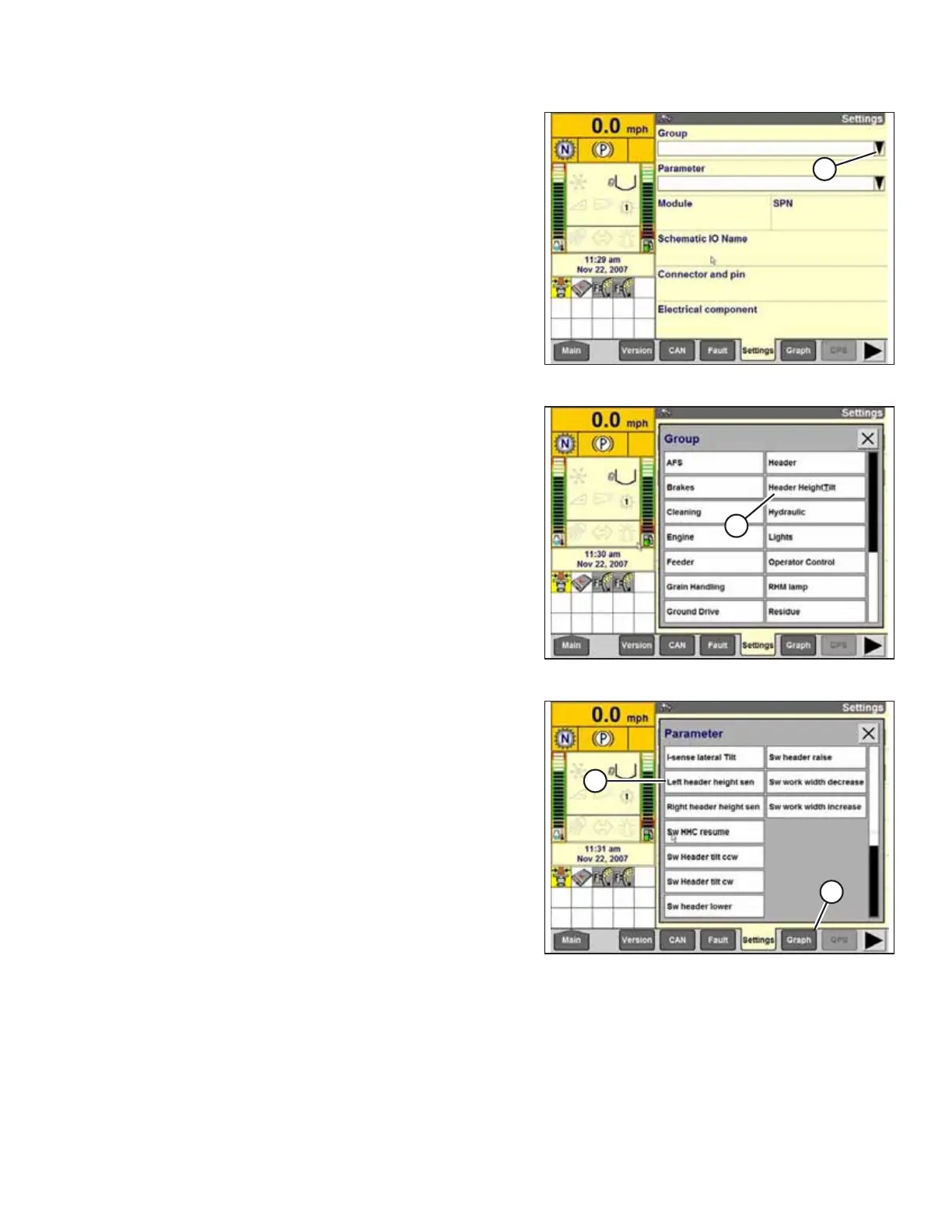

Figure 4.195: New Holland Combine Display
4. Select GROUP drop-down arrow (A). The GROUP dialog box
appears.

$
Figure 4.196: New Holland Combine Display
5. Select HEADER HEIGHT/TILT (A). The PARAMETER page
appears.

$
%
Figure 4.197: New Holland Combine Display
6. Select LEFT HEADER HEIGHT SEN (A), and then select
GRAPH button (B). The exact height sensor output voltage
is displayed at the top of page.
7. Raise and lower the header to see the full range of height
sensor output voltage readings.
8. If the sensor voltage is not within the low and high limits
shown in 4.4 Height Sensor Output Voltage Range –
Combine Requirements, page 111, or if the range between
the low and high limits is insufficient, the height sensors
will need to be adjusted. For instructions, refer to 4.4.2
Adjusting Header Height Sensor Voltage Range – Left Side,
page 114 and 4.4.3 Adjusting Header Height Sensor Voltage
Range – Right Side, page 114.
