1. Lower the header to the ground.
2. Shut down the combine and remove the key from the ignition.
$
%

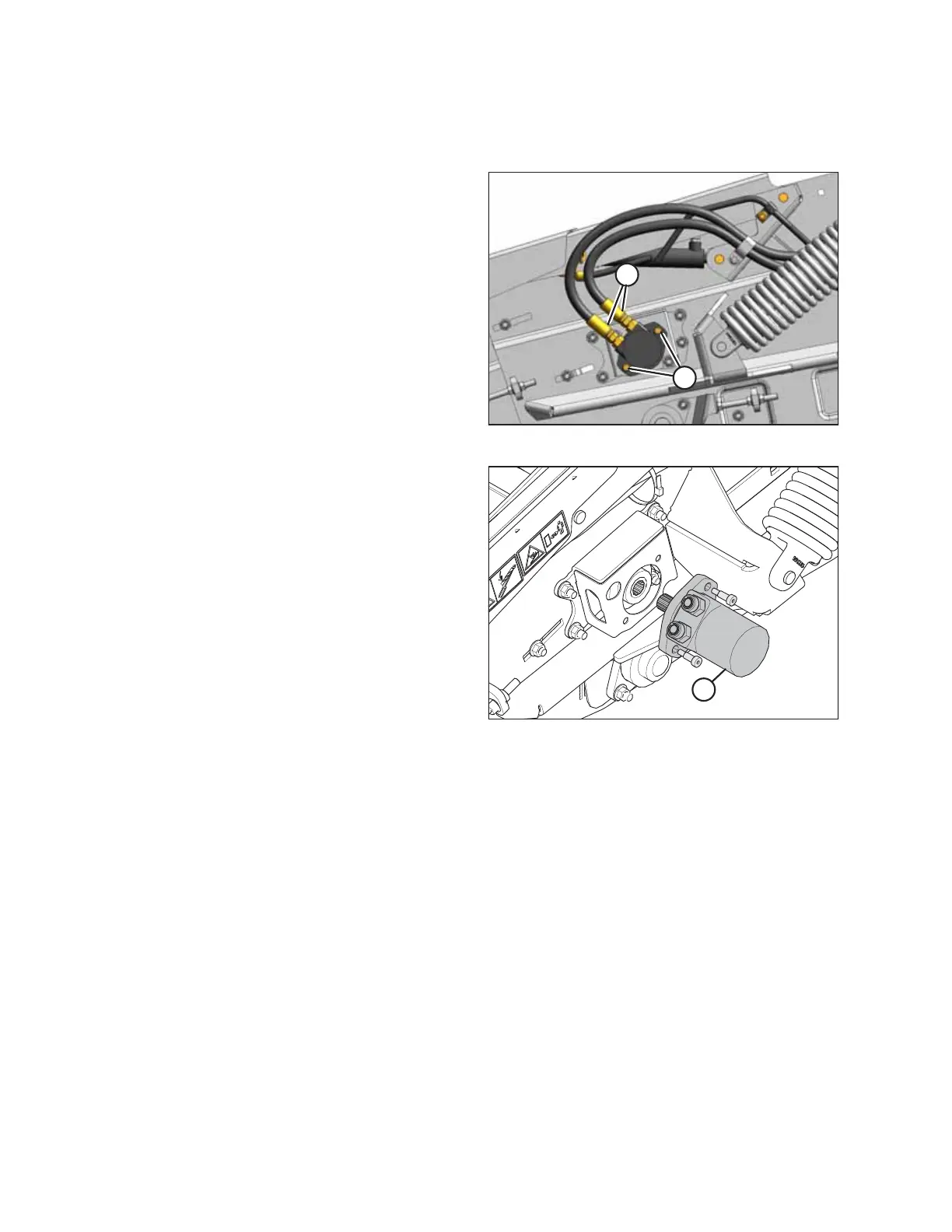

Figure 5.27: Front Hydraulic Motor – Left Side
3. Disconnect hydraulic hoses (A) from the front motor on the
left side of the header. Install caps onto the hose ends, or
wrap the hose ends with plastic and move the hoses away
from the work area.
IMPORTANT:
Keep hydraulic coupler tips and connectors clean. Allowing
dirt, dust, water, or foreign material to enter the system is a
major cause of hydraulic system damage. Do NOT attempt
to service hydraulic systems in the field. Overhauls must be
performed in an environment completely free of dust and
dirt, or else damage to the hydraulic system may result.
4. Remove two M8 hex flange nuts (B).
$
Figure 5.28: Front Hydraulic Motor – Left Side
5. Pull hydraulic motor (A) from the roller shaft.
MAINTENANCE AND SERVICING
