215575 239 Revision B

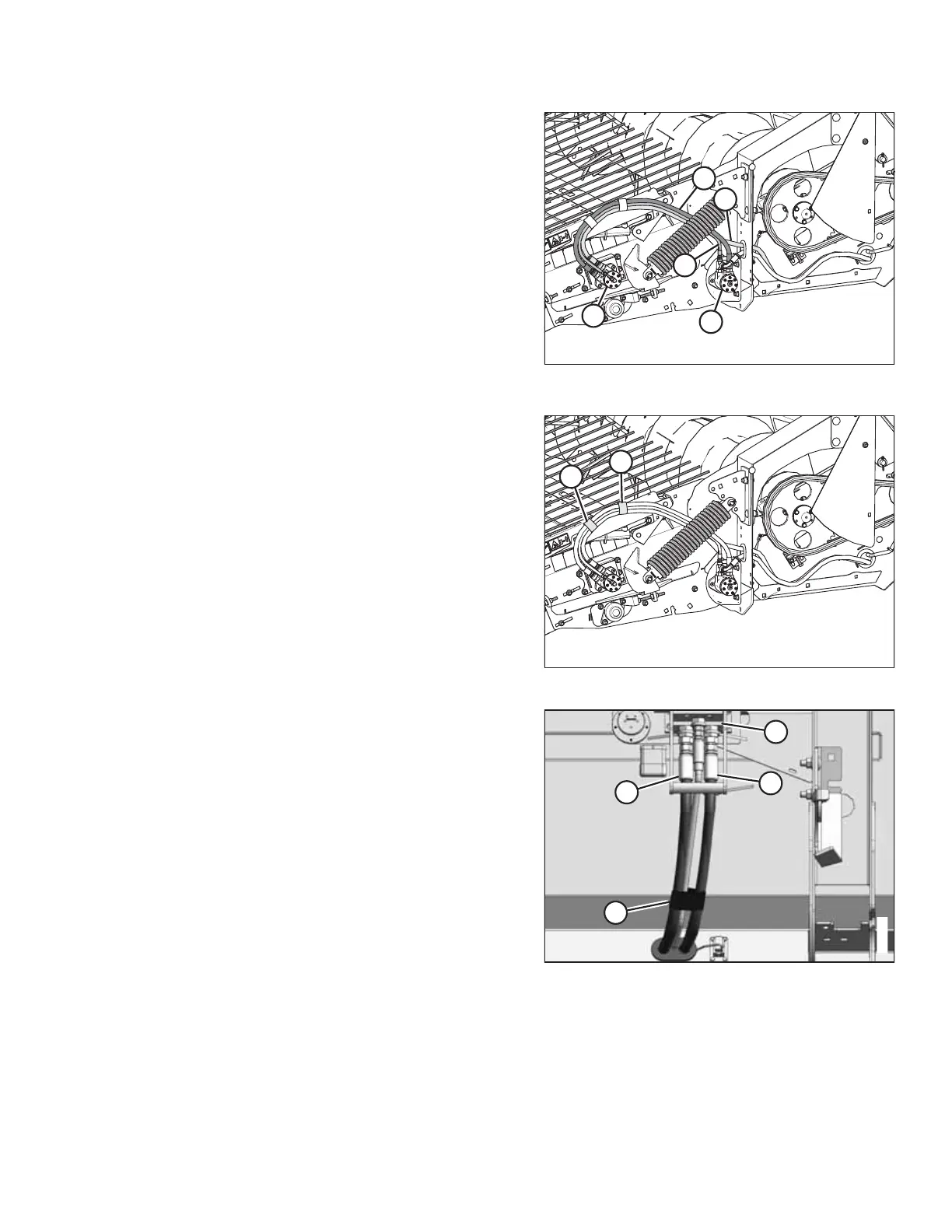

Figure 5.39: Left Side of Header
5. Disconnect and remove hydraulic hoses (A), (B), and (C)
from drive motors (D) and (E). Install caps onto the hose
ends or wrap the ends with plastic to prevent
contamination from dirt and debris.
IMPORTANT:
Keep hydraulic coupler tips and connectors clean. Allowing
dirt, dust, water, or foreign material to enter the system is a
major cause of hydraulic system damage. Do NOT attempt
to service hydraulic systems in the field. Overhauls must be
performed in an environment completely free of dust and
dirt, or else damage to the hydraulic system may result.
NOTE:
Parts have been removed from the illustration so that the
hydraulic hoses can be seen.
Figure 5.40: Left Side of Header
6. Remove cinch straps (A) from the disconnected and
capped hoses.
Figure 5.41: Multicoupler on Rear of Header
7. Remove cinch strap (A).
8. Disconnect hose (B) and hose (C) from multicoupler (D).
MAINTENANCE AND SERVICING
