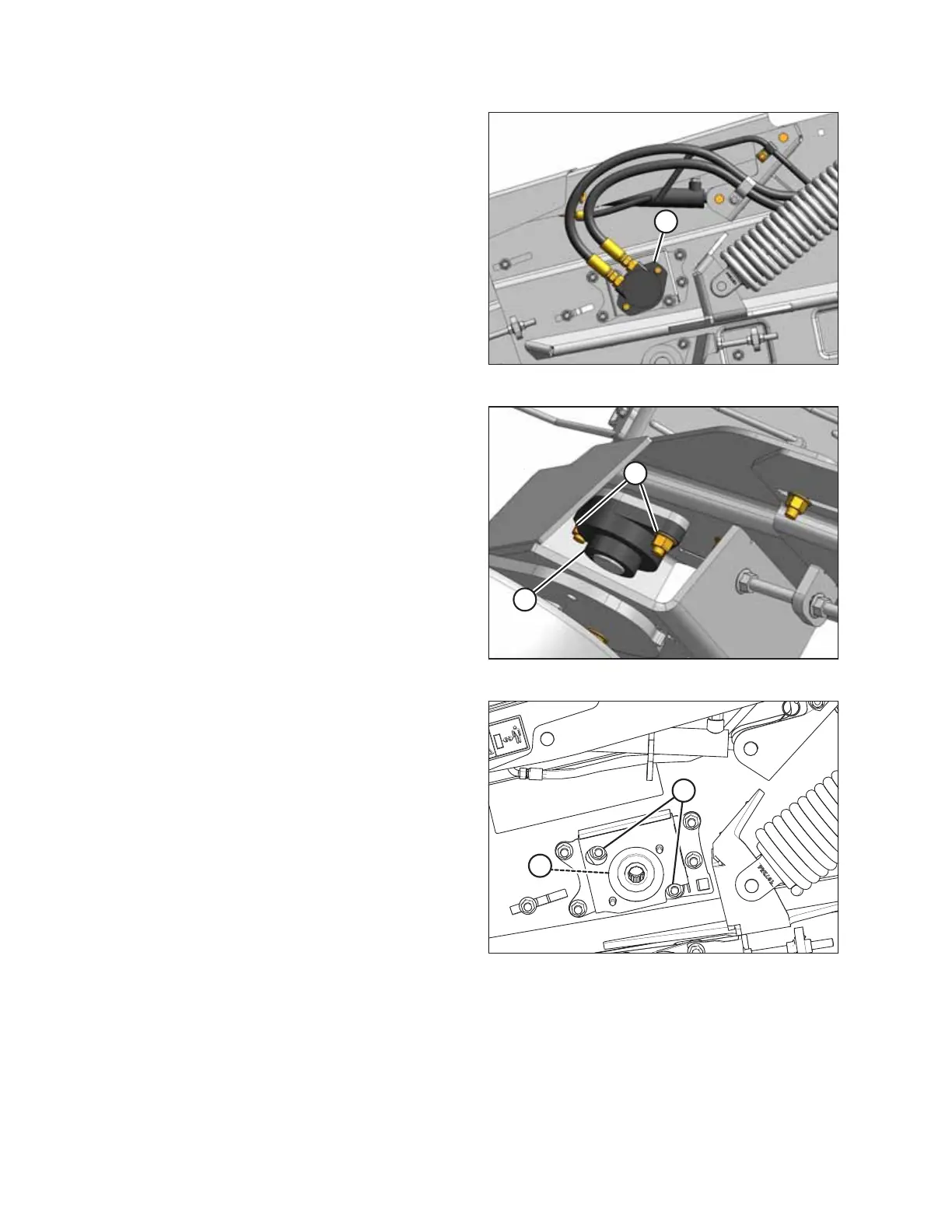

Figure 5.157: Front Hydraulic Motor
4. Remove front hydraulic motor (A). For instructions, refer to
Removing Front Hydraulic Motor, page 233.
5. Fully release the tension on the draper belts.

$
%
Figure 5.158: Front Deck Idler Roller
6. On each front deck idler bearing, loosen locking collar (A)
and two nuts (B) securing the bearing flange to the frame.

%
$
Figure 5.159: Left Front Deck Drive Roller
7. On the left front deck drive bearing, loosen locking
collar (A) and two nuts (B) securing the bearing flange to
the motor support.
