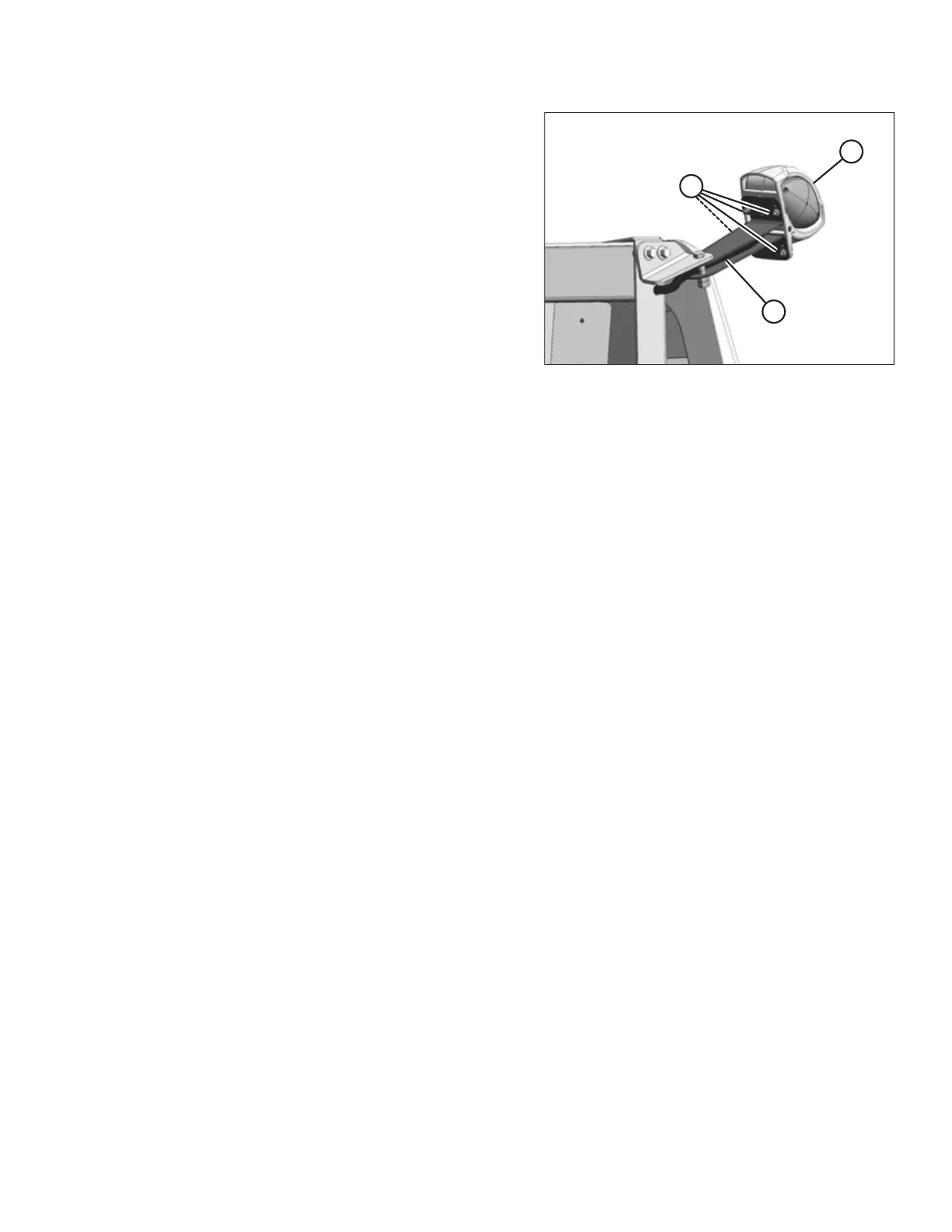

Figure 5.223: Transport Light
3. Pull wiring harness (A) out of the lamp bracket and locate
the connectors inside the wiring harness.
4. Disconnect the light wiring from the harness.
5. Remove four nuts (B) and remove lamp (C) from the
bracket.
6. Install new lamp (C) on the bracket and secure it with four
nuts (B).
7. Connect the lamp wiring to harness (A) and route the wires
inside the plastic covering. Seal the wiring with electrical
tape.
8. Ensure that the wiring harness is not damaged and secure
the harness inside the lamp bracket.
9. Check the operation of the new lamp.
