2E-14 - MIE MODELS - VELVET DRIVE TRANSMISSIONS 90-823225--1 1096
a
b
74183
c
d
74174
Mutli-Port Fuel Injection
a - Lock Nut and Flat Washer Tighten Until Bottoms Out, Then
Back Off One Half Turn.
b - Cable End Guide
c - Throttle Cable Anchor Stud
d - Cable Barrel

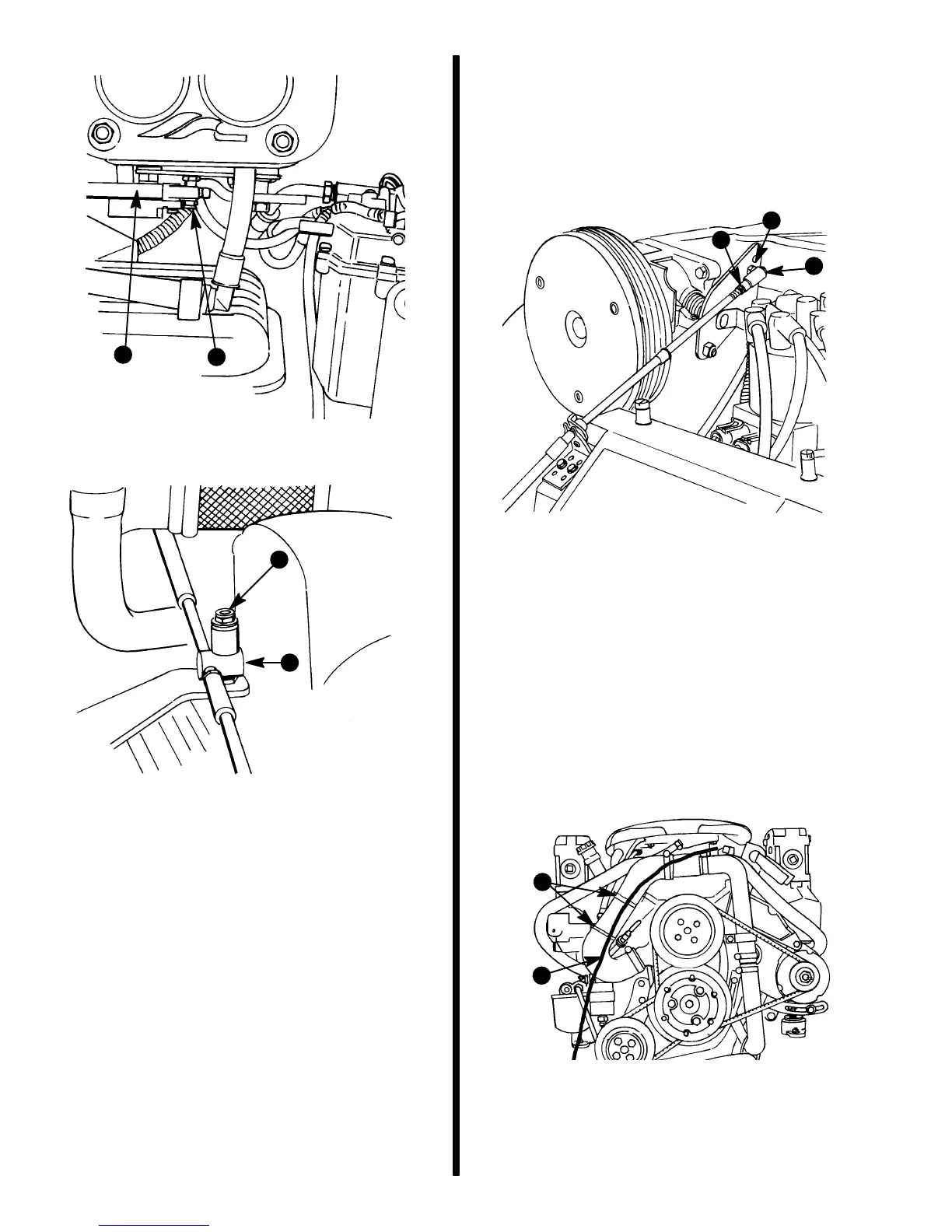

ATTACHING/ADJUSTING THROTTLE CABLE -
350 MAGNUM MPI GEN+ TOURNAMENT SKI
1. Place remote throttle lever in idle position and
attach cable to throttle lever stud, following cable
manufacturer’s instructions.
2. After throttle cable is adjusted, tighten locknut
against cable end.
a
74838
c
b
a - Cable End
b - Throttle Lever Stud
c - Locknut
ROUTING OF THROTTLE AND SHIFT CABLES -
350 MAGNUM MPI GEN+ TOURNAMENT SKI
1. Throttle cable - Route cable along starboard
stringer under engine mount and up to the port
side of electrical box.
2. Shift cable - Route shift cable from the starboard
to port side of engine, then between intake man-
ifold and elbow. Position cable so it will not inter-
fere with flame arrestor.
74833
b
a
a - Sta-Straps
b - Shift Cable
