4F-26 - WIRING DIAGRAMS 90-823225--1 1096

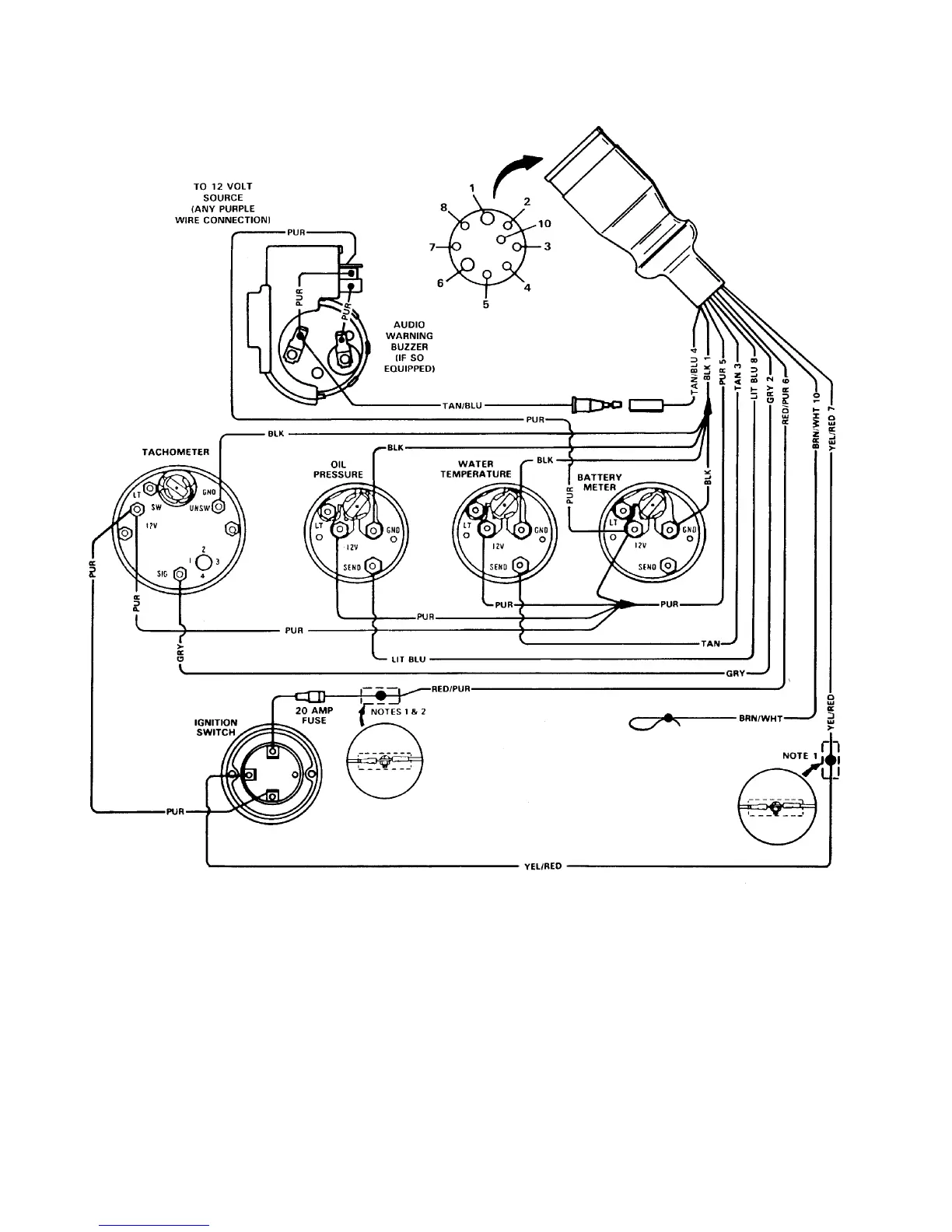

MIE QUICKSILVER INSTRUMENTATION
EARLIER STYLE AUDIO WARNING BUZZER
72939
NOTE 1: Connect wires together with screw and hex nut. Apply Liquid Neoprene to connection and slide rubber
sleeve over connection.
NOTE 2: Power for a fused accessory panel may be taken from this connection. Load MUST NOT exceed
35-40 amps. Panel ground wire MUST BE connected to instrument terminal that has an 8 gauge black (Ground)
harness wire connected to it.
B
S
I
