SEAWATER COOLING MODELS - 6A-1390-823225--1 1096
NOTE: With the engine level, sufficient draining of
manifolds will occur when exhaust manifold-to-ther-
mostat housing hoses are removed.
72993
a

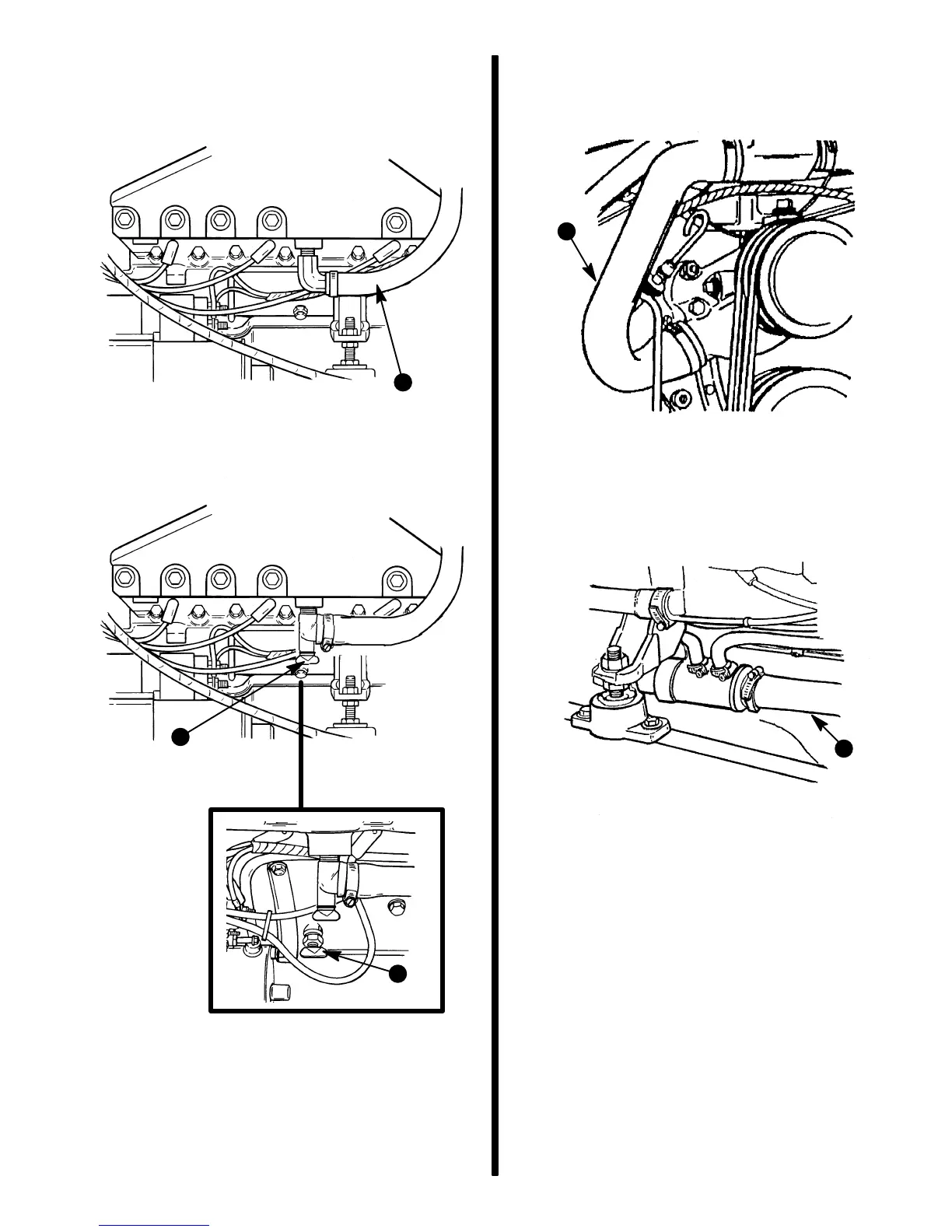

Starboard Side Shown (Port Similar)
a - Bottom Hose, Exhaust Manifold to Thermostat Housing
b
c
b - Drain Plug in Exhaust Manifold Elbow
c - Later Models Are Equipped With This Style Of Drain Plug.
5. Remove the engine water circulating pump hose
as shown.
72587
a
a - Hose, Water Circulating Pump to Thermostat Housing
6. Remove the power steering fluid cooler seawater
hose, as shown.
72588
a
a - Hose, Seawater Pump to Cooler
To Next Page
