8C-4 - HURTH DOWN ANGLE TRANSMISSION 90-823225--1 1096
!
WARNING
Avoid serious personal injury or property dam-
age caused by improper shifting. Anchor stud for
shift cable must be installed in the correct hole.
c
b
b
a
c
71020
a
74090

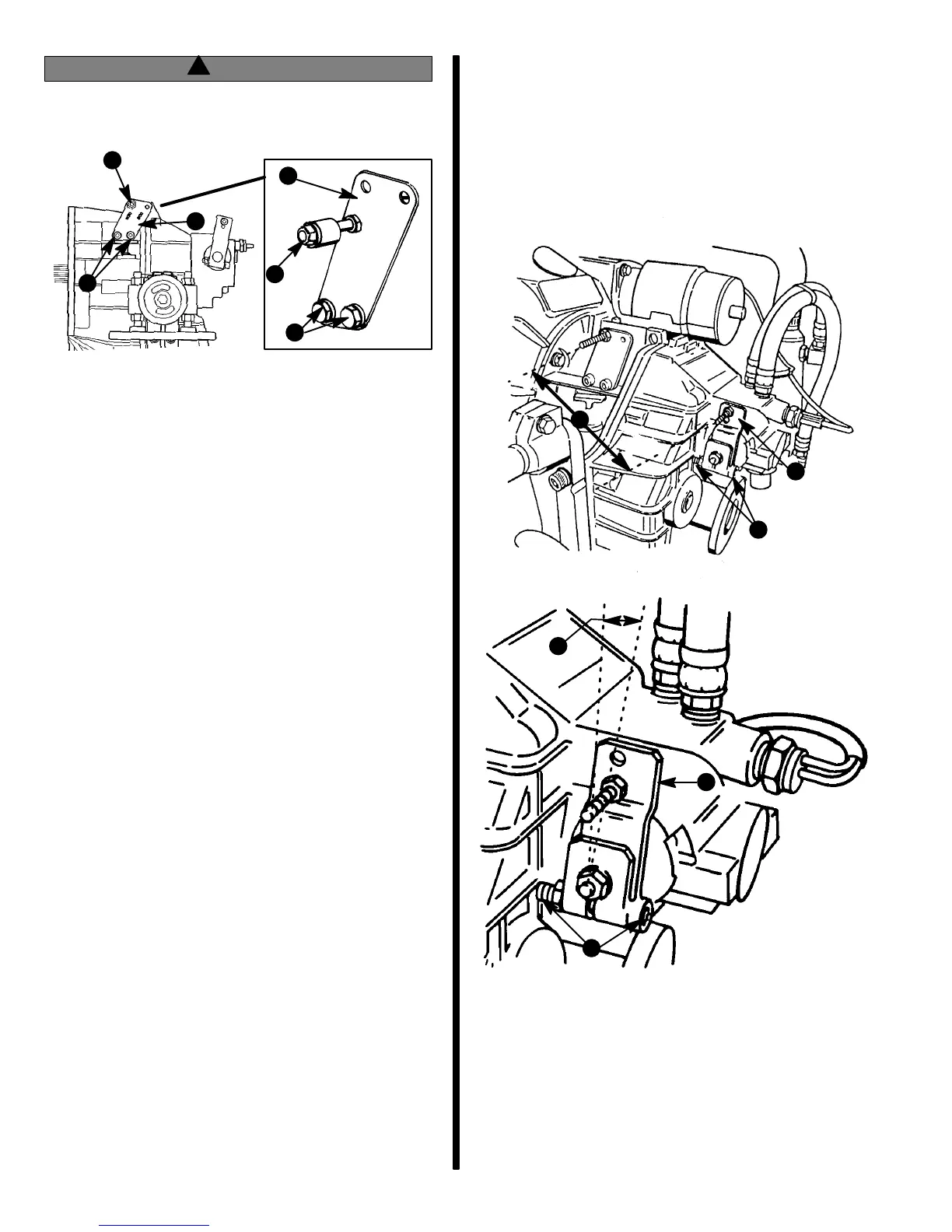

Shift Cable Bracket - Anchor Stud Position
Shown for 630A Transmission
a - Shift Cable Bracket
b - Anchor Stud Location
c - Bracket Mounting Bolts
IMPORTANT: Check that shift lever is positioned
approximately 10 degrees aft of vertical when in
the neutral detent position and that the distance
(c) between studs in the following is set at 7-1/8
in. (318 mm). If necessary, loosen clamping bolt
and position lever so that dimension (c) is as
shown when in the neutral detent position and
retighten bolt.
72958
d
a
b
a
d
50228
c
a - Shift Lever
b - Lever In Neutral Detent, Must Be Approximately 10 De-
grees Of Vertical
c - Dimension Between Studs - 7-1/8 In. (318 mm)
d - Clamping Bolt
To Next Page
