HURTH DOWN ANGLE TRANSMISSION - 8C-4590-823225--1 1096
NOTE: Later model Hurth transmissions have an al-
len head socket screw on oil filter cover.

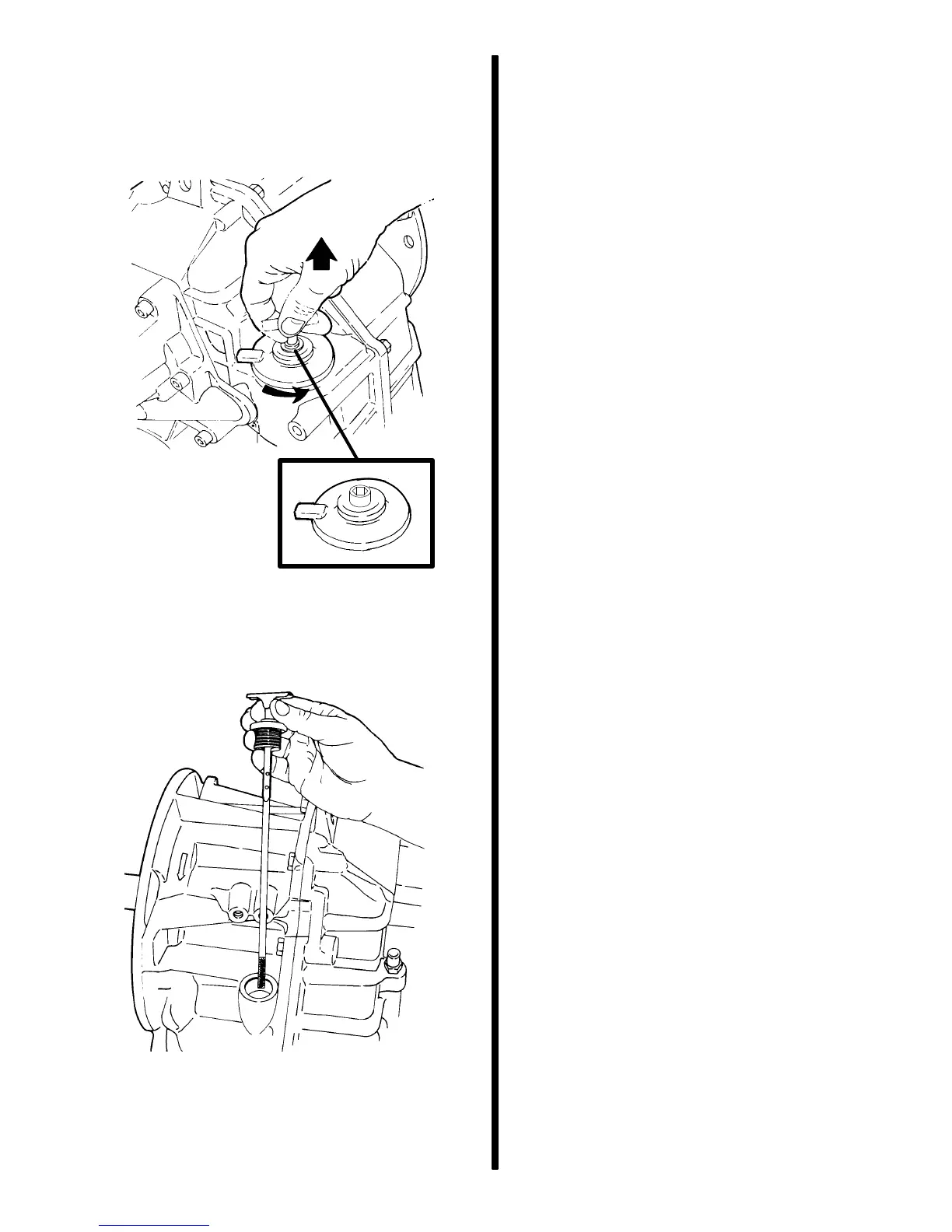

3. Remove oil filter from housing by turning (coun-
terclockwise) and pulling at the same time.
27666
a - Set Screw (Later Models)
4. Check fluid level. Fluid should be between min.
and max. marks on dipstick.
27661
